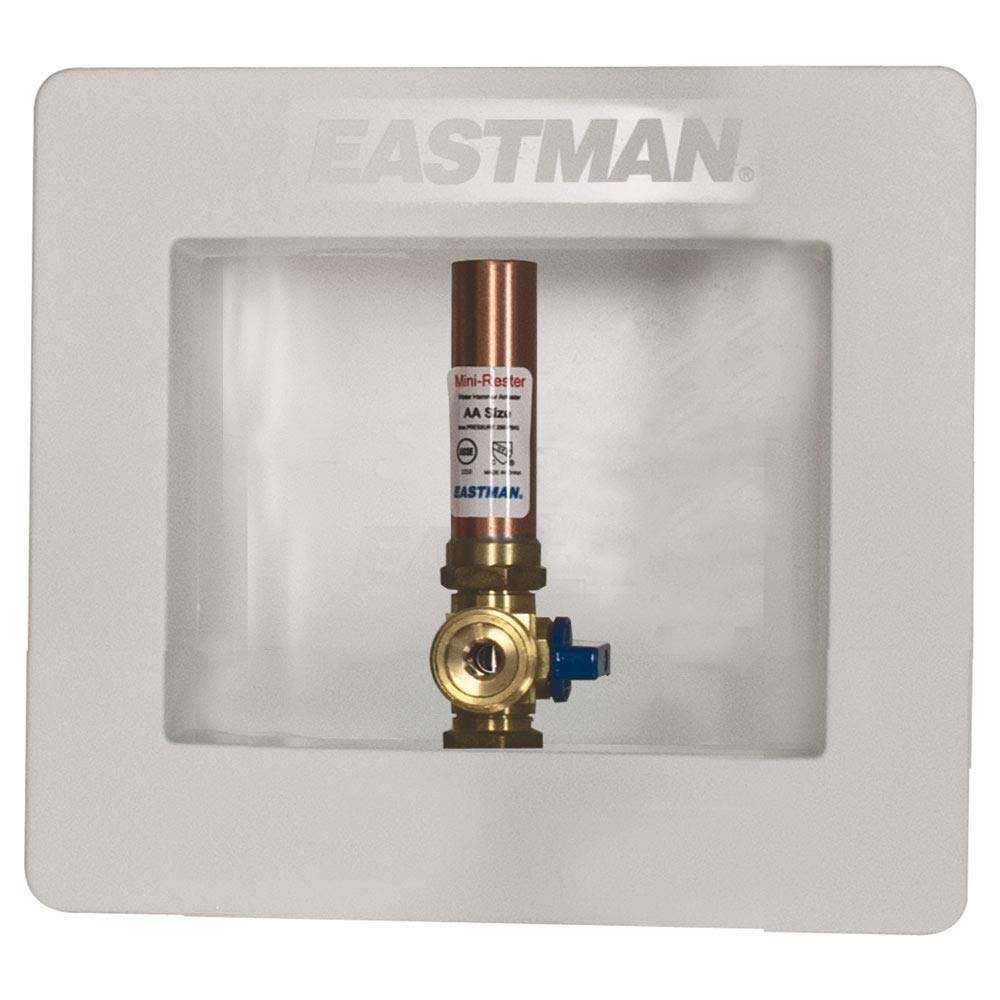

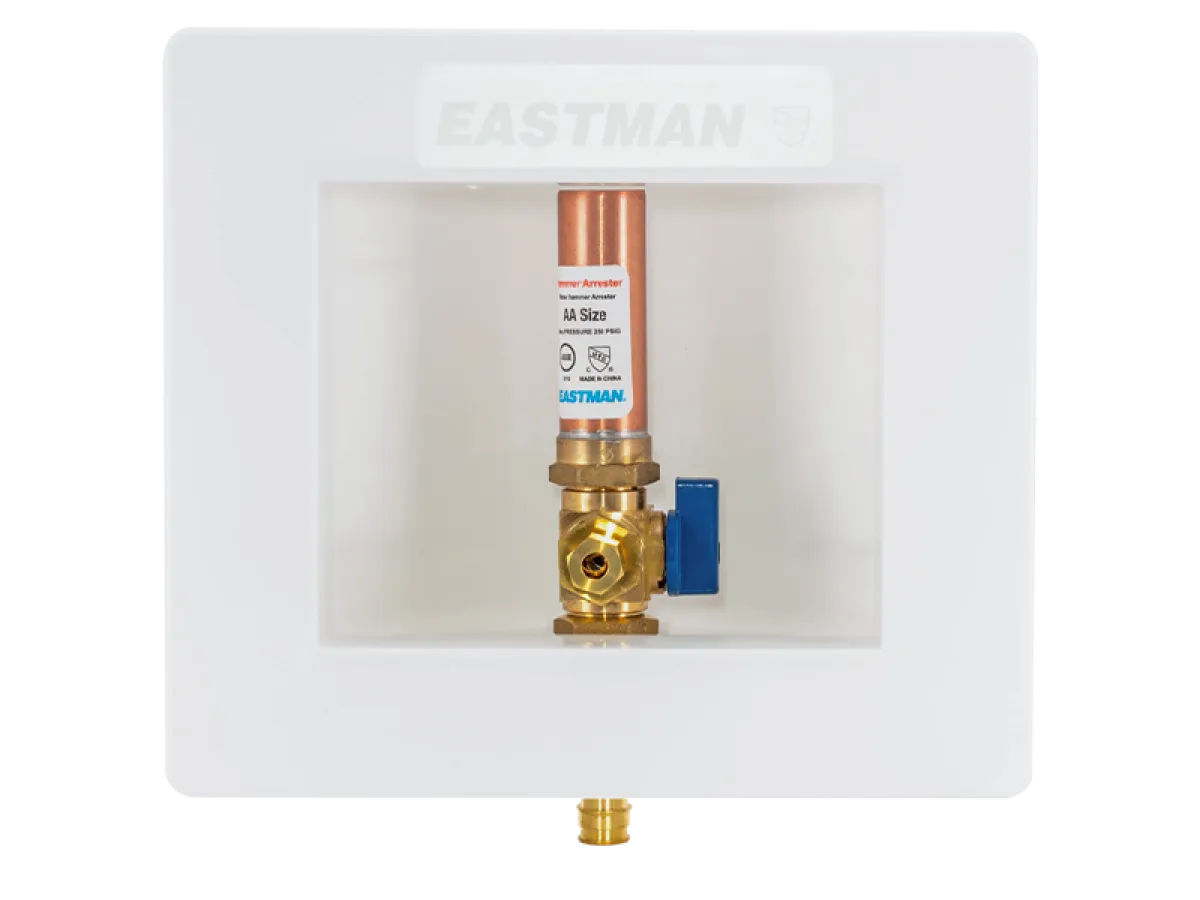

Eastman 60241 Ice Maker Outlet Box 1/2 in. Sweat (1 Count)

Product Description

Eastman 60241 is a pre-assembled ice maker outlet box with an integrated hammer arrestor and quarter-turn ball valve designed for recessed residential installations to supply water to refrigerators, ice makers, and water dispensers. The unit provides a 1/2 in. sweat inlet and a 1/4 in. OD compression outlet, includes a support bracket and faceplate cover, and is rated for 34 F to 180 F operating temperature and 125 PSI working pressure.

• Pre-assembled with pre-installed support bracket, faceplate cover, 1/4-turn brass ball valve, and hammer arrestor.
• Connections: 1/2 in. sweat inlet to 1/4 in. OD compression outlet with a quarter-turn valve for shut-off during maintenance.
• Rated for 34 F to 180 F operating temperature and 125 PSI working pressure; UPC certified and complies with lead-free law.

Product Highlights

Pre-assembled ice maker outlet box with integrated hammer arrestor and 1/4-turn ball valve; 1/2 in. sweat to 1/4 in. OD compression; rated 34 F–180 F and 125 PSI.

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 60241

Technical Specifications

• Brand: Eastman
• Manufacturer: EZ-FLO
• MPN: 60241
• Product Type: Ice maker outlet box
• Connection Type: Copper sweat inlet
• Inlet: 1/2 in. sweat
• Outlet: 1/4 in. OD compression
• Valve Type: 1/4-turn brass ball valve
• Hammer Arrestor: Pre-installed
• Included Items: Pre-installed support bracket; faceplate cover; 1/4-turn ball valve; hammer arrestor; 1/4 in. OD compression outlet
• Material/Construction: One-piece box and flange
• Applications: Ice maker; refrigerators; water dispensers; recessed residential installations
• Working Temperature: 34 F to 180 F (1 C to 82 C)
• Working Pressure: 125 PSI
• Approvals/Certifications: UPC certified; CUPC; AB1953; Complies with lead-free law
• UPC: 091712602415
• GTIN: 0091712602415
• Item Weight: 454 g
• Dimensions: 6.5 in x 3 in x 6.5 in
• Package Quantity: 1
