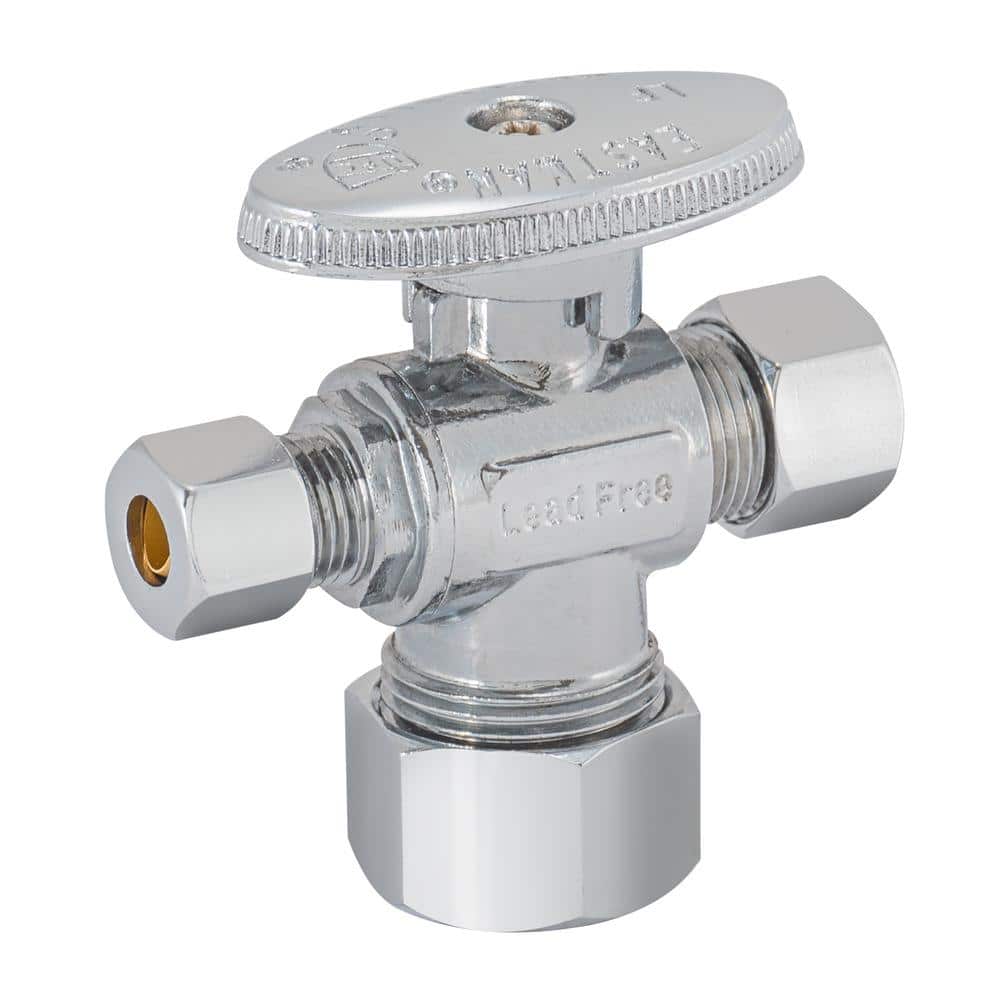

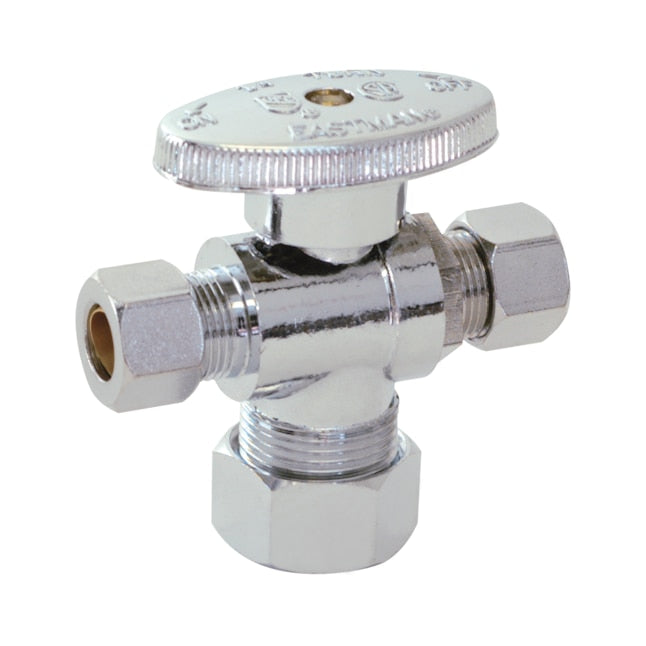

Eastman 48654LF Quarter-Turn Dual-Outlet 3-Way Stop Valve (5/8 in. x 3/8 in. x 1/4 in. OD Compression)

Product Description

The Eastman 48654LF is a quarter-turn dual-outlet 3-way stop valve that controls water flow at a plumbing fixture so maintenance can be performed without shutting off the main supply. It features a chrome-plated solid brass body, solid brass nuts, and a high-performance Celcon stem for a watertight seal. The valve has a removable oval handle, OD compression connections, a 125 PSI maximum operating pressure, and a 40 F to 140 F temperature range.

• Quarter-turn operation with removable oval-design handle for quick shutoff and access
• OD compression connections: 5/8 in. OD inlet x 3/8 in. OD outlet x 1/4 in. OD outlet
• Chrome-plated solid brass body, solid brass nuts, Celcon stem; rated 125 PSI and 40 F to 140 F

Product Highlights

Quarter-turn, three-way dual-outlet compression valve; chrome-plated brass; 125 PSI; 40 F to 140 F; UPC certified.

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 48654LF

Technical Specifications

• Brand: Eastman
• MPN: 48654LF
• Model Number: 48654LF
• Product Type: Quarter-turn dual-outlet 3-way stop valve
• Connection Type: OD compression
• Connection Sizes: 5/8 in. OD inlet x 3/8 in. OD outlet x 1/4 in. OD outlet
• Body Material: Chrome-plated solid brass
• Nuts Material: Solid brass
• Stem Material: Celcon (plastic)
• Operation: Quarter-turn
• Ports: 3
• Maximum Operating Pressure: 125 PSI
• Operating Temperature Range: 40 F to 140 F
• Certifications: Uniform Plumbing Code (UPC)
• Included Components: Valve
• Dimensions (L x W x H): 2 x 0.5 x 2 inches
• Weight: 0.3 pounds
• GTIN: 00091712421580
• UPC: 091712421580
