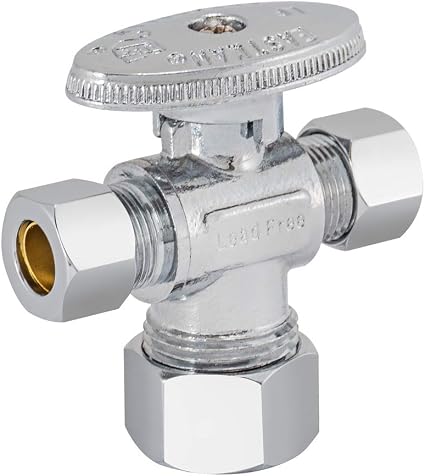

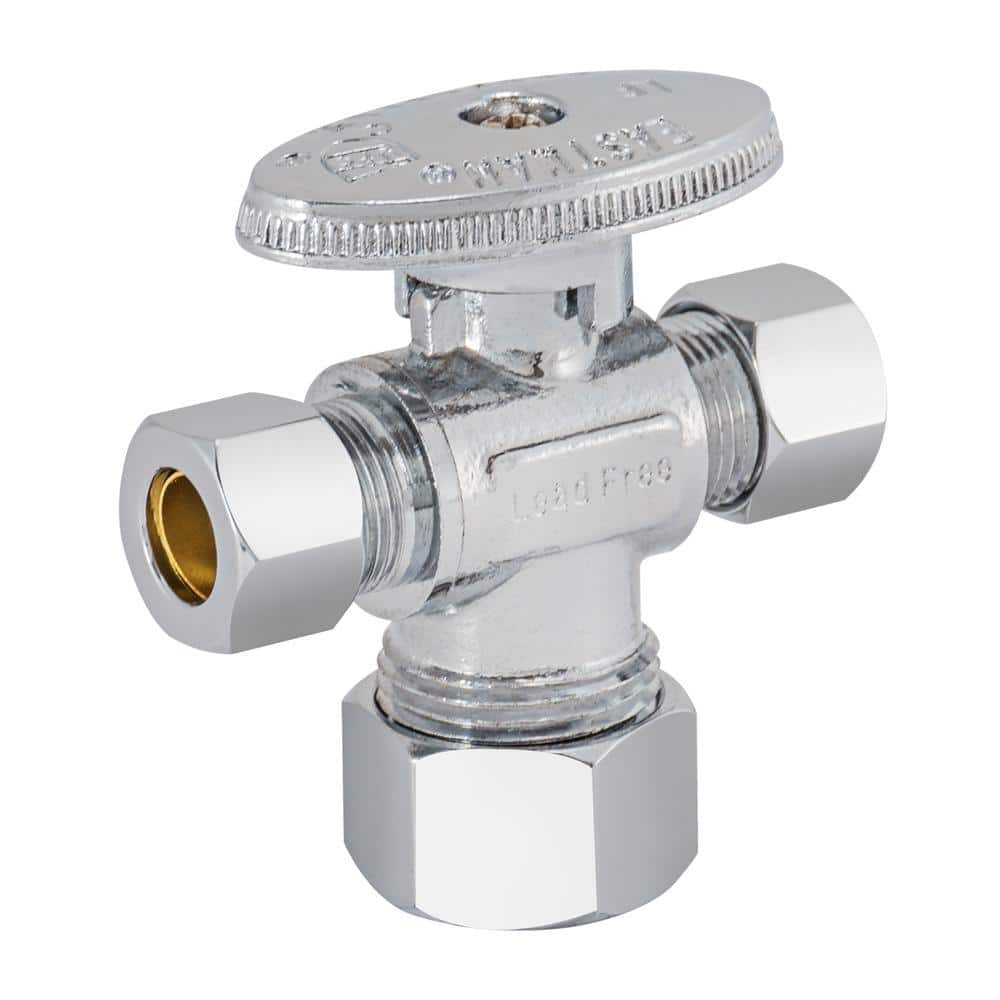

Eastman 48652LF Quarter-Turn Dual Outlet 3-Way Stop Valve (3/8 x 3/8 x 5/8 in.)

Product Description

Eastman 48652LF is a quarter-turn dual-outlet 3-way stop valve that controls water flow to plumbing fixtures for localized maintenance. The valve features a chrome-plated brass body with solid brass nuts and a celcon stem, a 5/8 in. OD compression inlet and two 3/8 in. OD compression outlets, and provides a watertight seal. It is NSF and UPC certified, compliant with lead-free laws, rated to 125 PSI and 40°F to 140°F.

• 1/4-turn operation with removable oval handle for shutoff and service access
• Connections: 5/8 in. OD compression inlet and two 3/8 in. OD compression outlets; three-port configuration
• Construction: chrome-plated brass body, solid brass nuts, celcon stem; maximum operating pressure 125 PSI; working temperature 40°F to 140°F; NSF and UPC certified

Product Highlights

Brass 3-way angle stop valve, 1/4-turn, 5/8 in. x 3/8 in. compression, 125 PSI, NSF/UPC certified, low-lead compliant

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 48652LF
• Country of Origin: China

Technical Specifications

• Brand: Eastman
• MPN: 48652LF
• Model Number: 48652LF
• Manufacturer: EZ-FLO
• Material: Brass
• Finish: Chrome-plated
• Stem Material: Celcon
• Valve Type: 3-way (dual outlet) angle stop / shut off valve
• Operation: 1/4-turn
• Size: 3/8 in. x 3/8 in. x 5/8 in. (compression)
• Inlet Connection Type: Compression
• Outlet Connection Type: Compression
• Outlet Connection Size: 0.38 in. (3/8 in.)
• Number of Ports: 3
• Item Dimensions (L x W x H): 1.75 x 0.5 x 2.5 inches
• Maximum Operating Pressure: 125 PSI
• Working Temperature: 40°F to 140°F
• Certifications: NSF, UPC
• Compliance: Complies with low-lead / lead-free plumbing laws
• Included Components: Dual outlet shut handle quarter-turn 3-way stop valve
• UPC: 091712429784
• GTIN: 00091712429784
• ASIN: B00GZ36S4S
• Country of Origin: China
