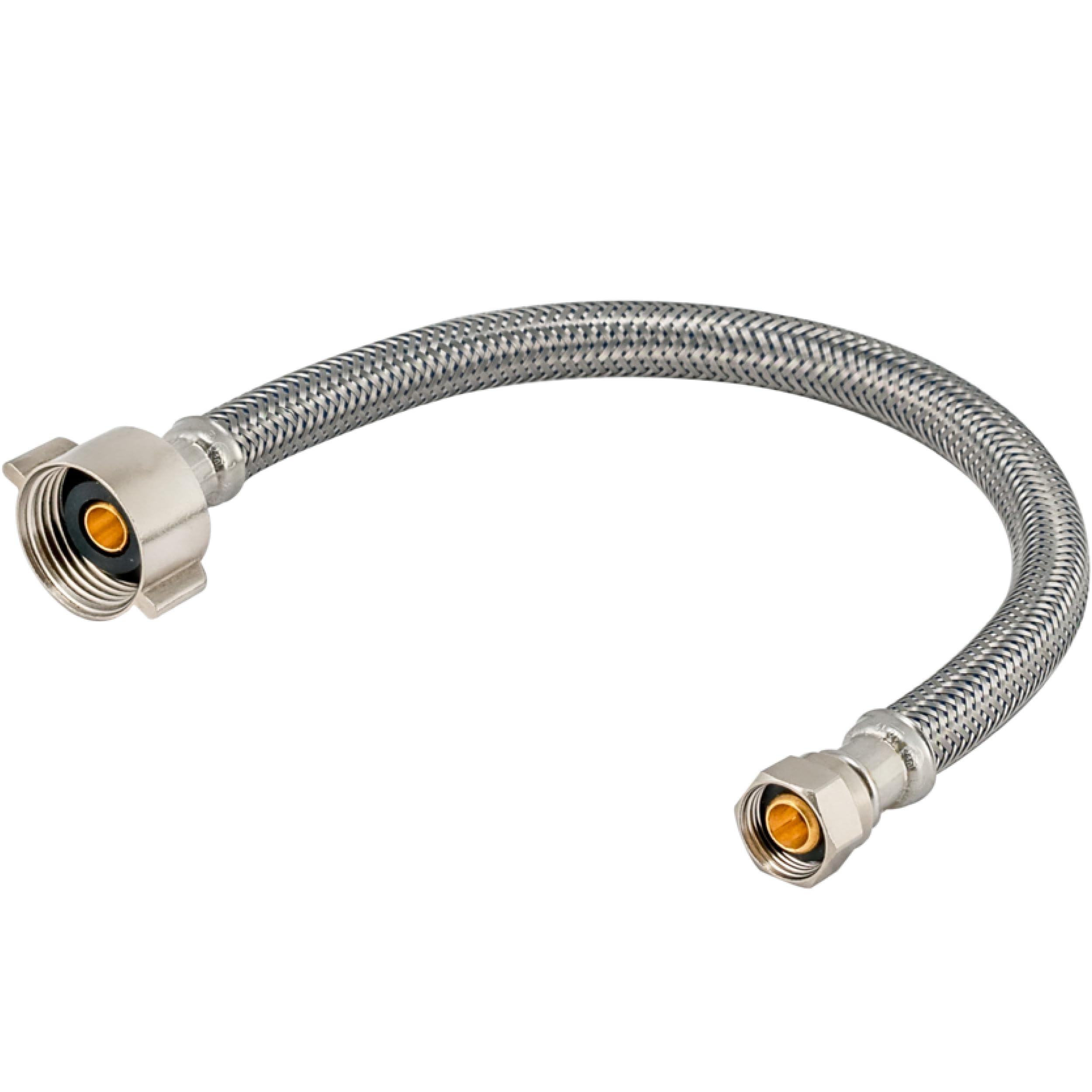

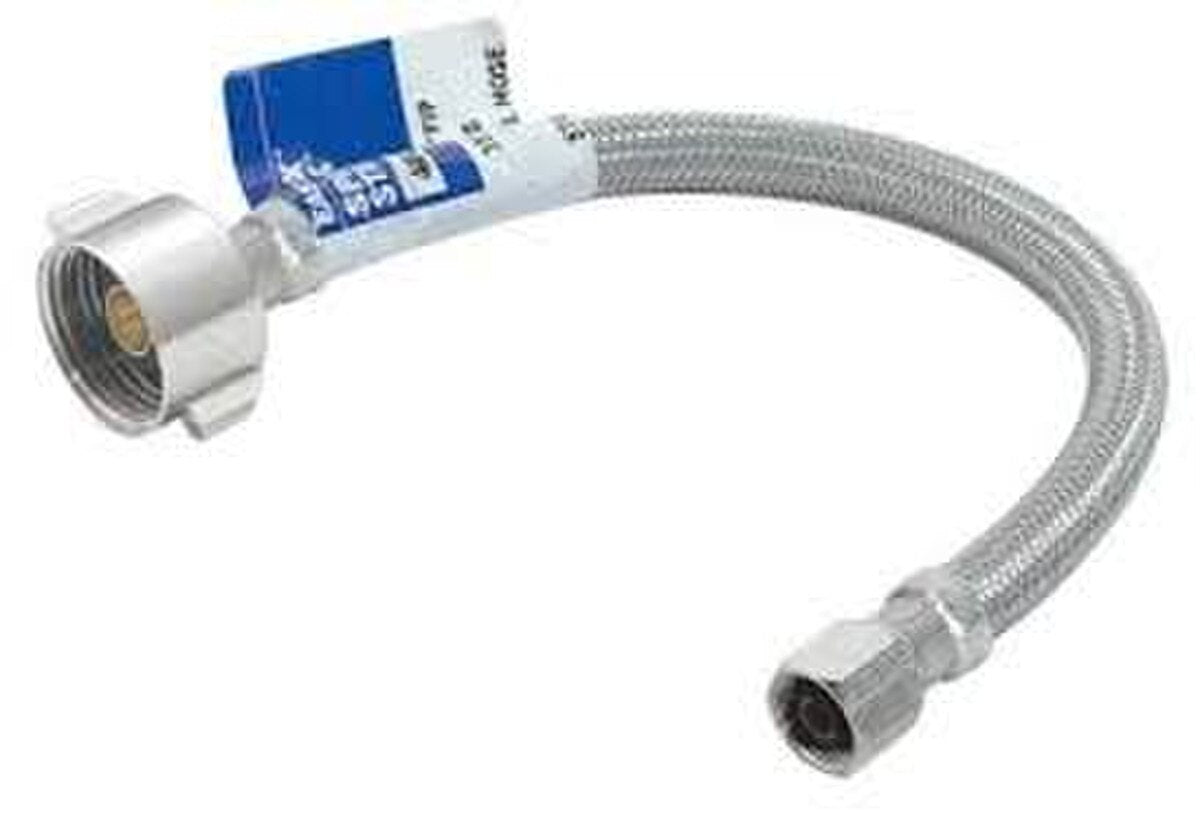

Eastman 48088 flexible toilet connector 12 inch stainless steel braided hose with 7/8 inch ballcock nuts, 3/8 inch compression

Product Description

The EASTMAN 48088 flexible toilet connector is designed for reliable water supply connections. This 12-inch connector features a durable construction with a non-toxic PVC core, multi-filament braided nylon reinforcement, and a grade 304 stainless steel braided exterior. It is engineered to prevent kinking and crimping, ensuring consistent water flow. Equipped with 7/8 inch Ballcock and 3/8 inch Compression fittings, it provides a secure connection for toilet applications. The connector operates effectively within a temperature range of 40 to 150 degrees Fahrenheit.

• Durable construction with PVC core and Grade 304 stainless steel braided exterior for longevity.
• Equipped with 7/8 inch Ballcock and 3/8 inch Compression connections for secure toilet installation.
• Flexible design prevents kinking and crimping, allowing for easy installation in tight spaces.

Product Highlights

This 12-inch flexible toilet connector features a durable stainless steel braided hose with 7/8 inch Ballcock and 3/8 inch Compression fittings, designed for reliable and easy installation.

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 48088

Technical Specifications

• MPN: 48088
• Length: 12 Inches
• Material: PVC, 304 Stainless Steel, Brass
• Exterior Finish: Chrome
• Thread Type: NPT
• Connections: 7/8 in. Ballcock x 3/8 in. Compression
• Working Pressure: 125 PSI
• Working Temperature: 40 Degrees F to 150 Degrees F
• Burst Pressure: 2500 PSI
• Maximum Temperature: 180 Degrees F
• Stainless Steel Type: Type 304
• Inlet Connection Size: 3/8 Inches
• Outlet Connection Size: 7/8 Inch
• Hose Inside Diameter: 1/4 in
• Hose Tube Material: PVC
• Hose Cover Material: 304 Stainless Steel
• Certifications: AB1953, CSA, NSF, UPC
• Fitting A Material: Brass
• Fitting B Material: Brass
• Fitting A Type: F Compression
• Fitting B Type: Ballcock Nut
• Fitting A Size: 3/8 in
• Fitting B Size: 7/8 in
• Hose Configuration: Coupled Assembly
• Height: 1.500 inches
• Width: 1.500 inches
