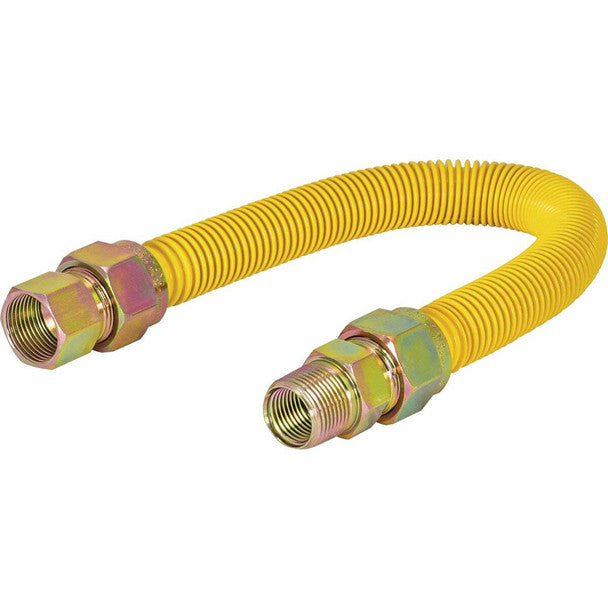

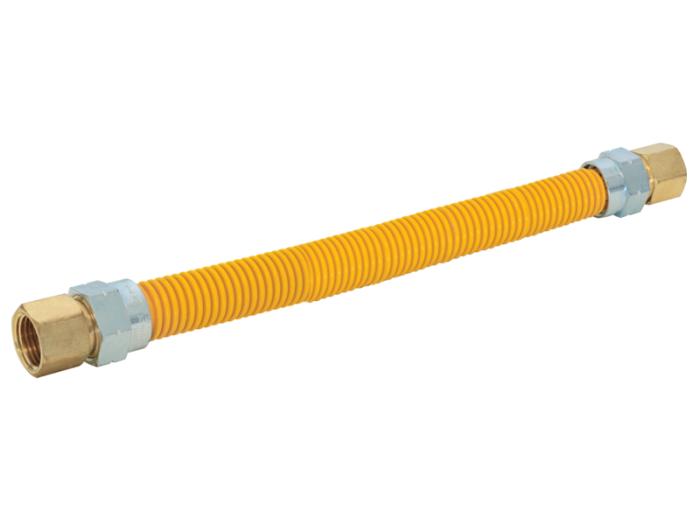

Eastman 40YE545536 1 in. OD epoxy-coated gas connector 290,900 BTUs FIP x MIP 36 in. length

Product Description

The Eastman 40YE545536 gas connector is a sturdy and reliable choice, constructed with stainless steel and a yellow epoxy coating. Its deep corrugations provide structural support against crushing, kinking, and cracking. The epoxy coating endures exposure to household chemicals and harsh environments. Featuring zinc-plated steel FIP fittings and CSA certification, this 1 in. OD, 36 in. length connector is suitable for HVAC applications, water heaters, ranges, and various appliances, working with both propane and natural gas, and rated up to 290,900 BTUs.

• Yellow epoxy-coated stainless steel 304 (ASTM 240) construction provides durability and corrosion resistance.
• CSA Certified for indoor and outdoor use with natural gas and LP, suitable for HVAC, water heaters, and ranges.
• Deep corrugations enhance flexibility and structural support, featuring zinc-plated steel S45C fittings.

Product Highlights

Sturdy stainless steel gas connector with yellow epoxy coating, deep corrugations for structural support, and resistance to chemicals and harsh environments.

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 40YE545536
• Country of Origin: China

Technical Specifications

• SKU: 40YE545536
• MPN: 40YE545536
• Product Type: Flexible Gas Connector
• Length: 36 in.
• Outer Diameter: 1 in.
• Inner Diameter: 0.75 inches
• Outlet Connection: 3/4 in. MIP
• Inlet Connection: 3/4 in. FIP
• Hose Material: Stainless Steel
• Fitting Material: Zinc-Plated Steel
• Btu Rating: 290,900
• Operating Temperature Range: -20 Degrees F to 150 Degrees F+
• Maximum Psi Rating: 0.5
• Width: 1.08 inches
• Height: 0.94 inches
• Finish: Yellow
• Fittings Included: Yes
• Pipe Tube Compatibility: Copper, Iron Pipe, Steel
