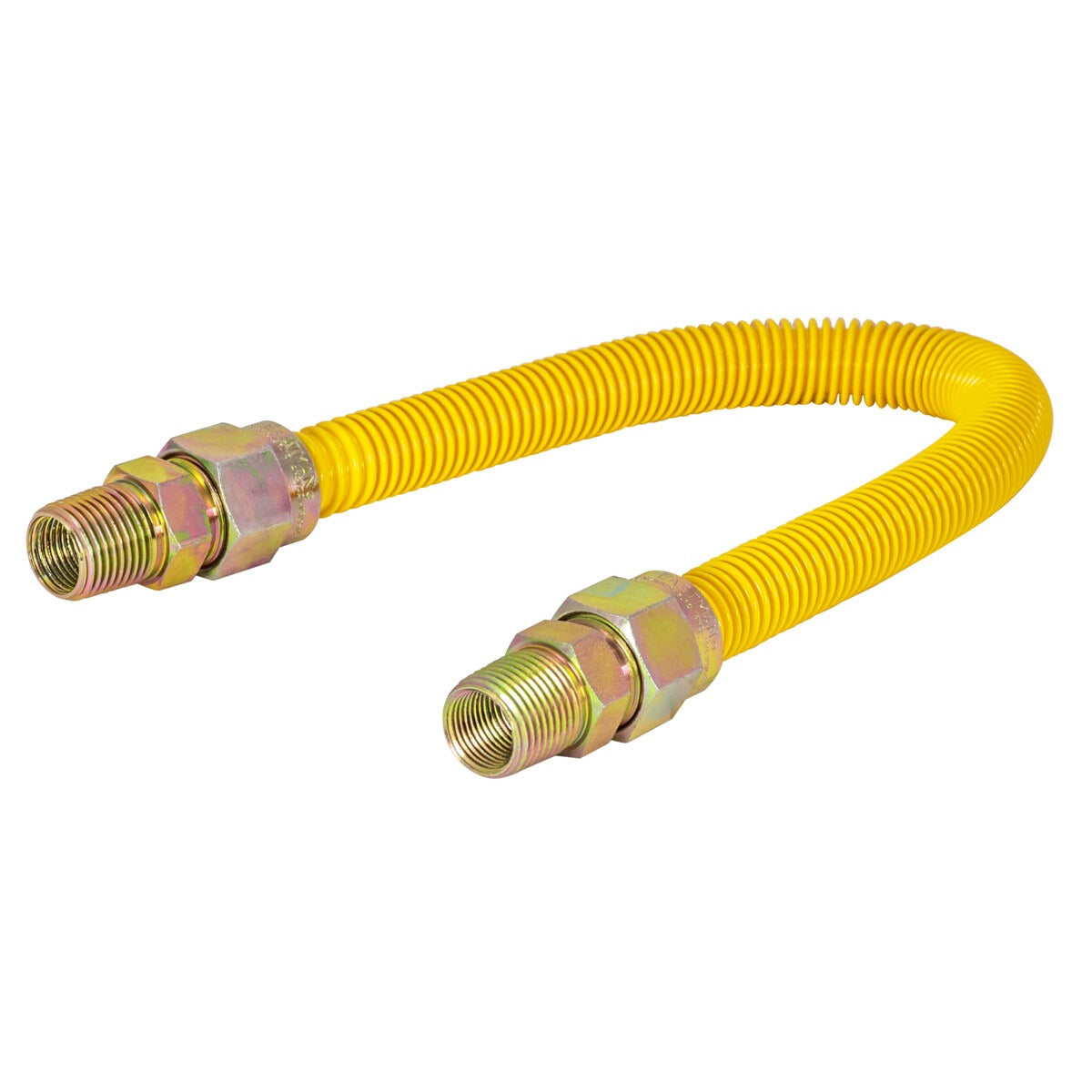

Eastman 30YE505024 5/8-In OD Stainless Steel Gas Connector 150,000 BTU (24-In)

Product Description

The Eastman 30YE505024 is a 24-inch, 5/8-inch OD stainless steel gas connector with DuraCoat epoxy coating, designed to connect gas ranges, boilers, and high-usage appliances to a shut-off valve. It includes two 1/2-inch MIP fittings (tapped 3/8-inch FIP), is rated for natural gas and liquid propane up to 150,000 BTU, and is 100% factory leak tested with a temperature range of -20 F to 150 F+.

• 5/8 in outer diameter, 24 in length with two 1/2 in MIP fittings (tapped 3/8 in FIP)
• Stainless steel construction with DuraCoat epoxy coating; approved for indoor and outdoor use
• Rated up to 150,000 BTU, temperature range -20 F to 150 F+, and 100% factory leak tested

Product Highlights

24-inch stainless steel gas connector, 5/8-inch OD, 1/2-inch MIP fittings, 150,000 BTU rating, DuraCoat epoxy-coated

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 30YE505024
