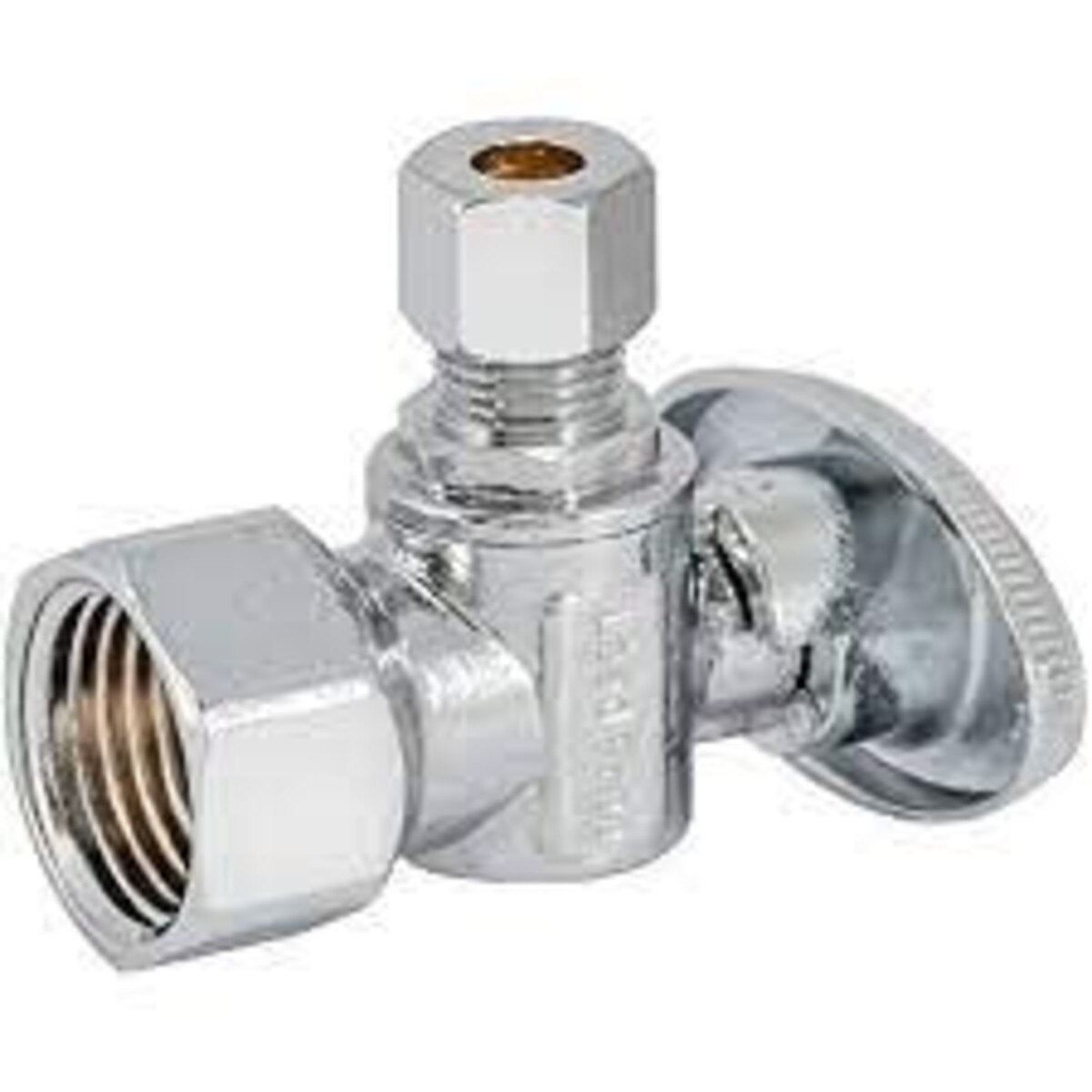

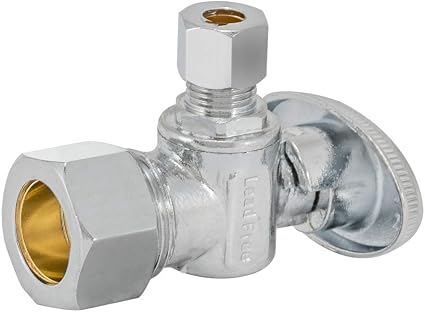

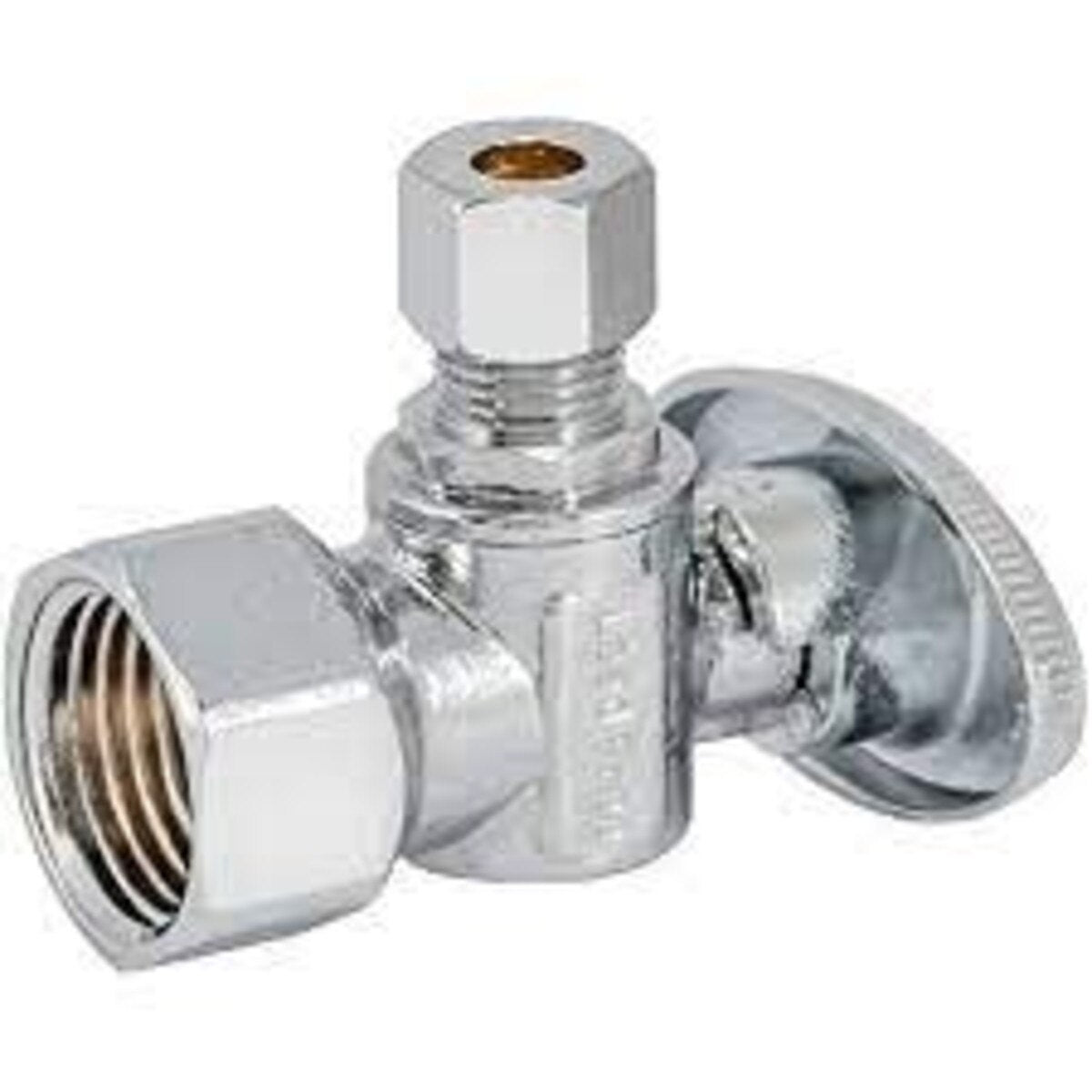

Eastman 10737LF Quarter Turn Angle Stop Valve (1/4 in OD x 5/8 in OD)

Product Description

Eastman 10737LF is a quarter-turn angle stop valve that controls water flow to household plumbing fixtures such as faucets, ice makers, dishwashers, and toilets. The valve is constructed of brass with a chrome-plated finish, uses Teflon seats for a watertight seal, and employs a brass ball mechanism for smooth quarter-turn operation. It features compression inlet and outlet connections and is lead-free compliant for potable water.

• Brass construction with chrome-plated finish and Teflon seats for corrosion resistance and watertight sealing
• Quarter-turn brass ball mechanism with removable oval handle for straightforward on/off control
• Compression connections (1/4 in outlet, 5/8 in inlet per item description) suitable for fixture supply shutoff

Product Highlights

Brass quarter-turn angle stop valve with Teflon seats, compression connections, and lead-free compliance.

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 10737LF
• Country of Origin: China

Technical Specifications

• Brand: Eastman
• MPN: 10737LF
• Manufacturer: EZ-FLO
• Product type: Quarter turn angle stop valve
• Material: Brass
• Finish: Chrome plated
• Inlet connection type: Compression
• Outlet connection type: Compression
• Inlet connection size: 0.625 Inches (5/8 in OD)
• Outlet connection size: 0.25 Inches (1/4 in OD)
• Valve type: Angle stop / shut off valve
• Operation: Quarter-turn (brass ball mechanism)
• Seats: Teflon
• Handle type: Removable oval handle
• Maximum operating pressure: 125 PSI
• Number of ports: 2
• Included components: Quarter-turn angle stop valve
• Specifications met: NSF, ANSI
• Dimensions (L x W x H): 2.25 x 0.75 x 2.5 inches
• Unit count / package quantity: 1
• Country of origin: China
• UPC: 091712429487
• Typical applications: Fixture supply shutoff for faucets, ice makers, dishwashers, toilets
