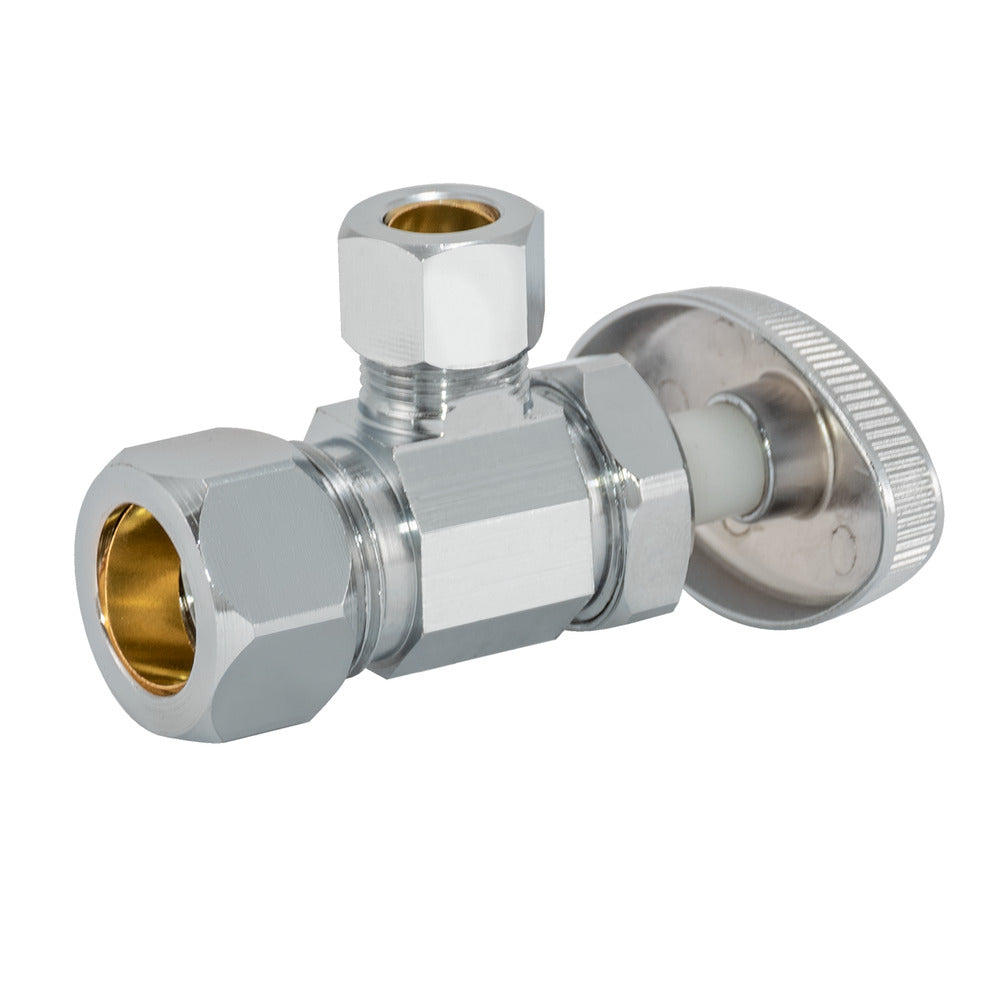

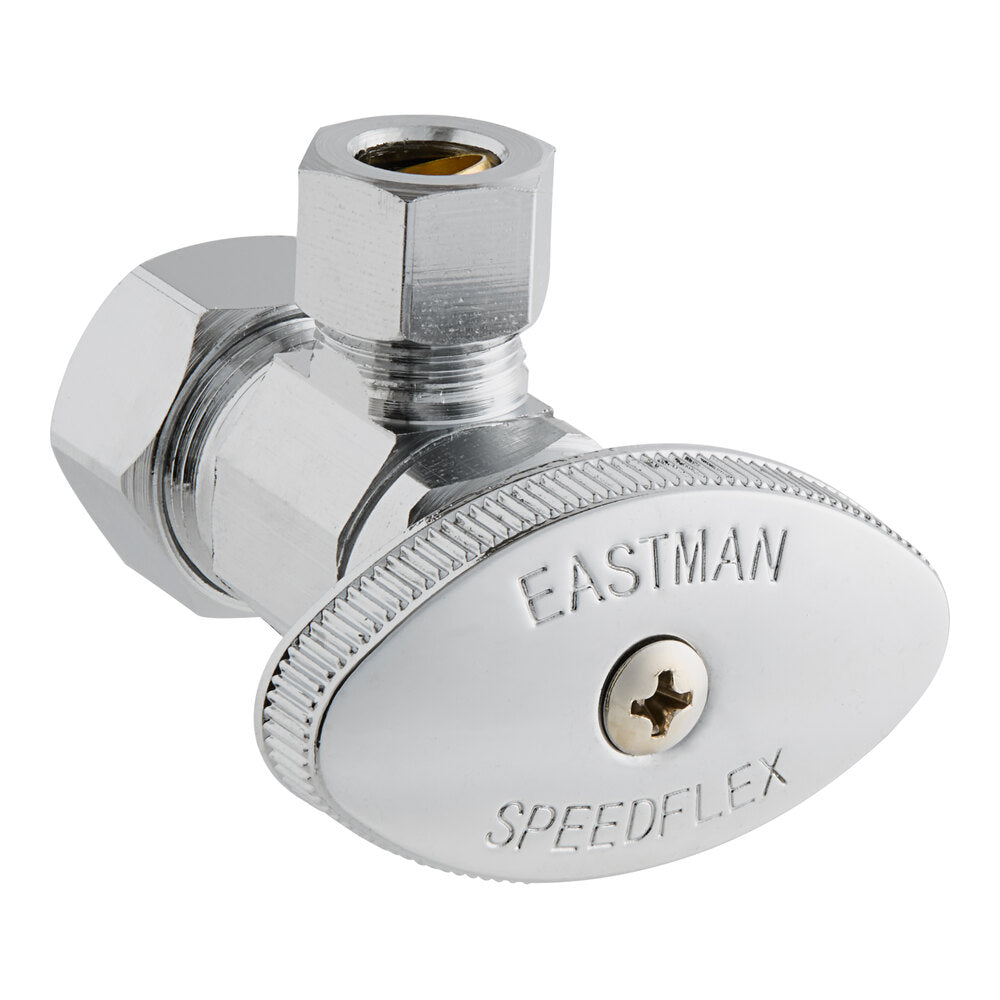

Eastman 04348LF Multi-Turn Angle Stop Valve 5/8 in OD Compression x 3/8 in OD Compression

Product Description

Eastman 04348LF is a multi-turn angle stop valve designed to control water flow to a single fixture without shutting off the main supply. The valve has a chrome-plated brass body with Teflon seats and a Celcon stem to provide a watertight seal. It uses 5/8 in OD compression inlet and 3/8 in OD compression outlet connections and is suitable for faucets, toilets, dishwashers, and ice makers.

• Chrome-plated brass multi-turn angle stop with 5/8 in OD compression inlet and 3/8 in OD compression outlet
• Teflon seats and high-performance Celcon stem for a watertight, leak-resistant seal
• Rated to 125 PSI working pressure and rated for -40 to 140 degrees F; compatible with common household fixtures

Product Highlights

Compression angle stop valve, chrome-plated brass construction, Teflon seats and Celcon stem, 5/8 in OD x 3/8 in OD connections, 125 PSI, -40 to 140 F

Product Information

Standard Information

• Brand: EASTMAN
• Manufacturer Part Number: 04348LF

Technical Specifications

• Brand: Eastman
• Manufacturer Part Number: 04348LF
• Type: Multi-turn angle stop valve
• Connection: 5/8 in OD compression inlet x 3/8 in OD compression outlet
• Inlet Connection Size: 5/8 in OD
• Outlet Connection Size: 3/8 in OD
• Connection Type: Compression
• Material: Brass (chrome-plated)
• Finish: Chrome-plated
• Seats: Teflon
• Stem: Celcon
• Working Pressure: 125 PSI
• Working Temperature: -40 to 140 degrees F
• Number of Ports: 2 (inlet and outlet)
• Dimensions: 2.83 x 2.28 x 1.02 inches
• Certifications: Uniform Plumbing Code (UPC); Lead-free compliant
• UPC: 091712426882
• Collection: SpeedFlex
