Eagle Gasket and Packing 1955x Flammable Liquid Safety Cabinet

Product Description

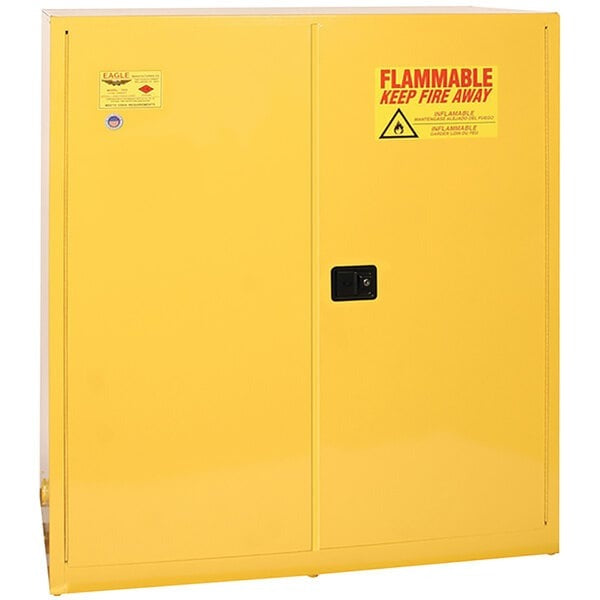

The EAGLE GASKET AND PACKING 1955x is a 110-gallon vertical drum flammable liquid safety cabinet built for facilities that store large-format containers of flammable materials. Constructed from 18-gauge steel with reinforced double-wall construction, this cabinet is designed to meet the demands of industrial and commercial environments. It ships at 525 pounds and measures 59 inches wide, 34 inches deep, and 65 inches tall. The cabinet carries FM Approval, confirming it meets recognized fire-protection standards for flammable liquid storage. Two manual-closing doors and a solid ground connection provide passive fire-safety compliance during daily use.

This cabinet is intended for use in manufacturing facilities, maintenance shops, fleet service bays, chemical storage rooms, and similar environments where flammable liquids in drum quantities must be stored in compliance with NFPA 30 and OSHA 1910.106 flammable liquid storage requirements. It accommodates vertical drum configurations and is suited for locations requiring organized, code-compliant storage of large liquid containers. The yellow high-gloss powder-coat finish provides a standard hazard-identification color for flammable storage areas. Installation is typically handled by facilities maintenance personnel or safety officers.

Key Features

• FM Approved construction for flammable liquid storage compliance
• 18-gauge steel with reinforced double-wall build for structural durability
• Two adjustable shelves rated at 350 pounds per shelf capacity
• Lead-free, high-gloss yellow powder-coat finish resists chipping and rust
• Galvanized steel shelving for corrosion resistance in chemical storage environments
• Solid ground connection supports static discharge safety
• Made in America

Compatibility

Designed as an OEM-style flammable liquid safety cabinet for vertical drum storage applications in industrial, commercial, and institutional facilities requiring FM-approved and OSHA-compliant flammable liquid containment.

Installation Notes

Installation should be performed by qualified facilities maintenance personnel in accordance with NFPA 30 and applicable OSHA flammable storage regulations. Position the cabinet on a level surface away from ignition sources and ensure the ground connection is properly bonded before placing containers inside. Do not block door swing clearance or obstruct the self-latching mechanism. Confirm local fire code requirements for maximum allowable quantities before loading the cabinet.

Technical Specifications

• Capacity: 110 Gallons
• Shelf Capacity: 350 pounds per shelf
• Exterior Width: 59 inches
• Exterior Depth: 34 inches
• Exterior Height: 65 inches
• Interior Width: 56 inches
• Interior Depth: 30.375 inches
• Interior Height: 60.5 inches
• Gauge: 18 Gauge
• Material: Steel
• Number of Doors: 2
• Door Type: Manual-Closing
• Number of Shelves: 2
• Color: Yellow
• Shipping Weight: 525 pounds
• Certifications: FM Approved
• Country of Origin: United States

Standard Information

• Brand: EAGLE GASKET AND PACKING
• Manufacturer Part Number: 1955x
