Eagle Cutting Tool VM4350-056-6-D Masonry Drill Bit

Product Description

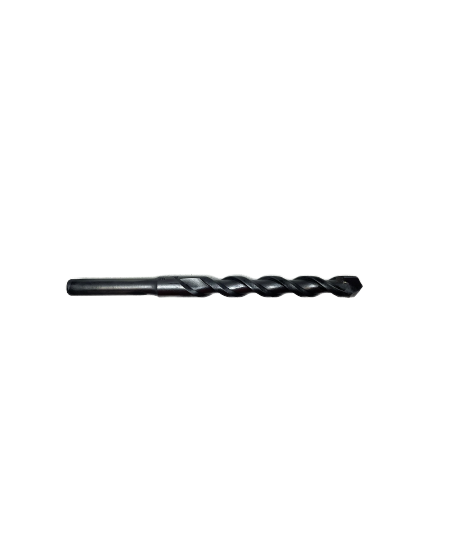

The EAGLE CUTTING TOOL VM4350-056-6-D is a carbide tipped masonry drill bit designed for drilling into concrete, block, brick, stone, and similar hard masonry materials. With a 7/8 inch cutting diameter and a 6 inch overall length, this bit provides the reach needed for standard anchor and fastener installations. The carbide tip delivers durability and wear resistance under the high-friction demands of masonry drilling. This bit is manufactured in the USA and is used by electricians, plumbers, HVAC technicians, and general contractors who need reliable masonry penetration on the job site.

This masonry drill bit suits residential and light commercial applications where concrete or masonry penetration is required. Typical uses include drilling for anchor bolts, pipe penetrations, conduit runs, and equipment mounting points in concrete walls, block foundations, and brick structures. The 6 inch overall length accommodates standard depth requirements for most common fastener and sleeve anchor installations without the need for an extension.

Key Features

• Carbide tipped cutting edge for extended wear life in hard masonry materials
• 7/8 inch cutting diameter suits standard sleeve anchors and masonry fasteners
• 6 inch overall length provides reach for typical anchor and penetration depths
• USA manufactured construction
• Minimum order quantity of 1 for flexible procurement

Compatibility

Designed as an OEM-style replacement and direct-use masonry drill bit compatible with standard rotary hammer and hammer drill chucks accepting 7/8 inch shank tooling for masonry and concrete boring applications.

Installation Notes

This bit is installed and used by licensed tradespeople including electricians, plumbers, and HVAC mechanics performing masonry penetrations per NEC, IPC, or IFGC requirements as applicable. Always use appropriate eye and respiratory protection when drilling masonry. Ensure the drill is set to hammer mode when drilling into concrete or block, and allow the bit to cool periodically during extended use to preserve tip integrity. Never use this bit on steel or wood.

Technical Specifications

• Cutting Diameter: 7/8 inches
• Overall Length (OAL): 6 inches
• Tip Material: Carbide
• Weight: 0.75 pounds
• Country of Origin: USA

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: VM4350-056-6-D
