Eagle Cutting Tool VM4350-012-3-D Masonry Drill Bit

Product Description

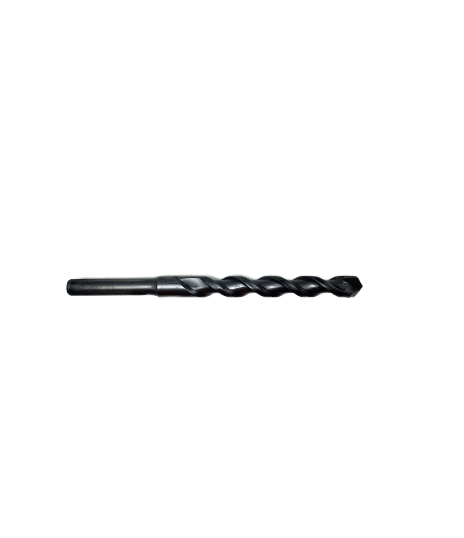

The EAGLE CUTTING TOOL VM4350-012-3-D is a carbide-tipped masonry drill bit designed for boring through concrete, block, brick, and similar masonry substrates. The bit measures 3/16 inch in diameter with a 3 inch overall length, making it well suited for shorter-reach applications where a compact profile is needed. The carbide tip provides the hardness required to penetrate abrasive masonry materials without rapid wear. This bit is manufactured in the USA and is a standard choice for electricians, plumbers, HVAC technicians, and general contractors when anchor holes or penetrations are needed through masonry walls or floors.

This masonry drill bit fits common rotary hammer and standard rotary drill applications where a 3/16 inch hole is required. Typical uses include setting anchors for conduit straps, pipe hangers, equipment mounts, and similar trade fastening tasks in concrete block, poured concrete, or brick construction. The 3 inch overall length suits close-quarters drilling and standard-depth anchor holes without requiring an extension.

Key Features

• Carbide tip construction for extended life in abrasive masonry materials
• 3/16 inch diameter for standard anchor and fastener pilot holes
• 3 inch overall length for close-quarters and standard-depth applications
• USA manufactured
• Compatible with standard rotary drills and rotary hammer drills

Compatibility

Designed as an OEM-style replacement or standard-use masonry drill bit for use in conventional rotary drills and rotary hammer drills accepting round-shank bits in 3/16 inch diameter.

Installation Notes

Masonry drilling is typically performed by licensed tradespeople during rough-in or finish work on commercial and residential projects. Always wear appropriate eye protection and dust control measures when drilling into masonry, as silica-containing dust presents a respiratory hazard. Use the drill at the appropriate speed setting for masonry materials and avoid excessive lateral force, which can cause bit deflection or tip damage. Power down all tools before changing bits.

Technical Specifications

• Drill Diameter: 3/16 inch
• Overall Length (OAL): 3 inches
• Tip Material: Carbide
• Country of Origin: USA
• Weight: 0.63 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: VM4350-012-3-D
