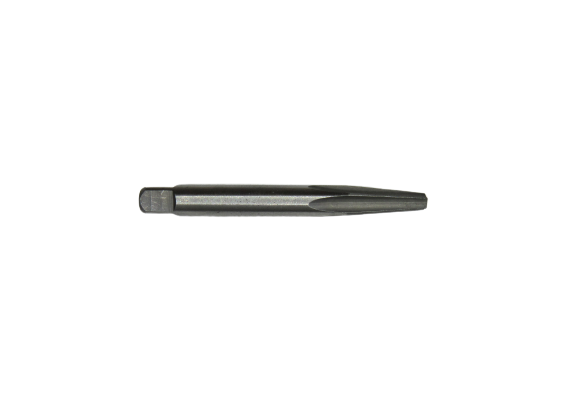

Eagle Cutting Tool TSE500-SP9-I Hss Spiral Flute Screw Extractor

Product Description

The EAGLE CUTTING TOOL TSE500-SP9-I is a Size 9 high-speed steel (HSS) spiral flute screw extractor designed to remove broken, stripped, or seized fasteners from metal, wood, and composite materials. The spiral flute geometry bites into the damaged fastener as reverse torque is applied, drawing the extractor deeper for a secure grip. At 4.09 pounds, this is a substantial tool built for demanding trade use. Machinists, millwrights, maintenance technicians, and skilled tradespeople working in fabrication or field repair will find this extractor suited to heavy-duty extraction tasks.

This extractor is intended for use on larger broken fasteners where smaller extraction sets lack the reach or torque capacity to do the job. The Size 9 designation places it at the upper end of the spiral flute extractor range, making it appropriate for large-diameter bolts and studs commonly encountered in heavy equipment, industrial machinery, structural steel work, and commercial mechanical systems. It is used with a tap wrench, drill press, or appropriately sized reversible drill in a controlled removal operation.

Key Features

• High-speed steel (HSS) construction for hardness and wear resistance against tough fastener materials
• Spiral flute design self-tightens under reverse torque for progressive grip
• Size 9 extractor for large-diameter broken bolt and stud removal
• Import-grade tooling suitable for professional and production use
• Minimum order quantity of 1 unit for individual purchase

Compatibility

Designed as an OEM-style replacement or stock replacement for Size 9 spiral flute screw extractors used with standard tap wrenches and reversible drill setups in metal fastener extraction applications.

Installation Notes

Screw extractor use requires a licensed or experienced machinist or tradesperson familiar with fastener removal procedures. Before use, drill a pilot hole into the center of the broken fastener using an appropriately sized left-hand drill bit; correct pilot hole sizing is critical to extractor performance and preventing breakage. Apply cutting fluid to reduce heat and friction during the extraction process. Never apply excessive side load to the extractor, as HSS tooling can fracture under bending stress.

Technical Specifications

• Material: High-Speed Steel (HSS)
• Extractor Size: 9
• Flute Type: Spiral Flute
• Weight: 4.09 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: TSE500-SP9-I
