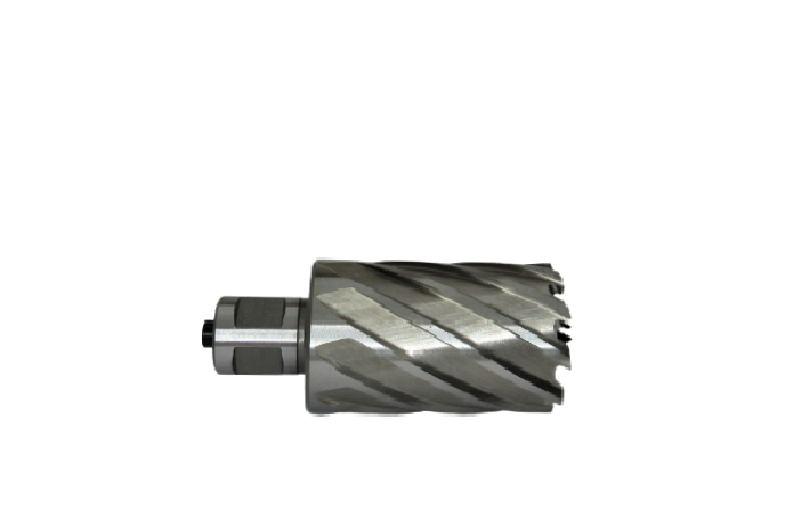

Eagle Cutting Tool TFZ-24256-ET Hss Universal Cutter

Product Description

The EAGLE CUTTING TOOL TFZ-24256-ET is a high-speed steel (HSS) universal cutter designed for milling and material removal across a range of machining applications. With a 1-3/4 inch cutting diameter and a 2 inch length of cut, this tool is suited for shops and field machinists who need reliable, consistent performance from a straight-geometry universal cutter. Weighing in at 0.97 pounds, it is a compact, solid-body tool built for use in horizontal and universal milling setups. HSS construction provides adequate toughness for cutting ferrous and non-ferrous materials at moderate feeds and speeds.

This cutter is used in horizontal milling machine applications where a universal or straddle milling setup is required. It is appropriate for job shops, tool rooms, and production environments handling keyway cutting, slotting, and profile milling tasks. The 2 inch length of cut accommodates moderate-depth passes in a variety of workpiece materials. Machinists, tool and die makers, and maintenance technicians working with manual or CNC horizontal mills are the primary installers and operators of this cutter.

Key Features

• HSS construction provides toughness and wear resistance for general-purpose milling
• 1-3/4 inch cutting diameter suits standard horizontal milling arbor setups
• 2 inch length of cut allows moderate-depth slotting and profile passes
• Universal cutter geometry supports a broad range of milling operations
• Lightweight at 0.97 pounds, reducing arbor load in multi-cutter straddle setups

Compatibility

Designed as an OEM-style replacement or standard stocking cutter for horizontal and universal milling machines accepting a 1-3/4 inch diameter arbor-mounted cutter.

Installation Notes

Installation is performed by qualified machinists or tool and die personnel. De-energize and lock out the milling machine before mounting or removing the cutter from the arbor. Ensure the arbor spacers, collars, and arbor nut are properly torqued per the machine manufacturer's specifications. Inspect the cutter for chips or cracks before each use and confirm runout is within acceptable limits before beginning a cut.

Technical Specifications

• Cutting Diameter: 1-3/4 inches
• Length of Cut: 2 inches
• Material: High-Speed Steel (HSS)
• Weight: 0.97 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: TFZ-24256-ET
