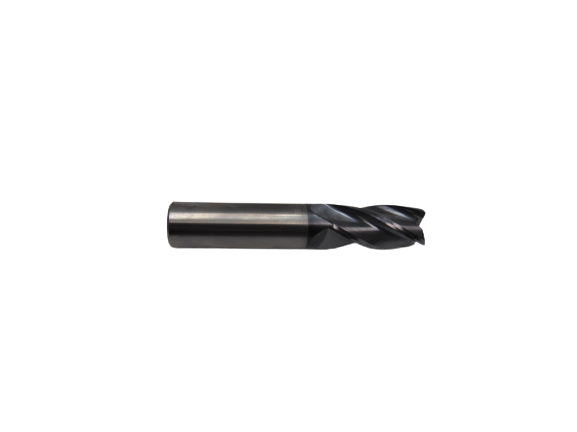

Eagle Cutting Tool TDD50-4048S-ALT-D 4 Flute Altin End Mill

Product Description

The EAGLE CUTTING TOOL TDD50-4048S-ALT-D is a solid carbide, four-flute end mill with an AlTiN (aluminum titanium nitride) coating and a corner chamfer geometry. It features a 3/4 inch cutting diameter and a matching 3/4 inch shank diameter, making it a single-end tool suited for high-performance milling operations in demanding materials. The AlTiN coating provides elevated heat resistance and hardness, extending tool life in dry or semi-dry cutting conditions. Manufactured in the USA, this end mill is designed for machinists and tooling professionals running production milling operations on machining centers or CNC mills.

This end mill is intended for use in metalworking and industrial machining applications where a corner chamfer profile is required to break sharp edges or produce chamfered features in a single pass. The solid carbide construction and four-flute configuration support high feed rates and smooth finishes in ferrous and non-ferrous alloys. It is well suited for vertical and horizontal machining centers operating at appropriate spindle speeds for the tool diameter and workpiece material.

Key Features

• Solid carbide construction for rigidity and wear resistance
• AlTiN coating for elevated heat and abrasion resistance in high-speed cutting
• Four-flute design supports higher feed rates and improved surface finish
• Corner chamfer geometry produces chamfered edges in a single pass
• 3/4 inch cutting diameter with matching 3/4 inch shank for secure tool holding
• Single-end configuration; USA manufactured

Compatibility

Designed for use in standard 3/4 inch collet chucks, end mill holders, or hydraulic tool holders on CNC machining centers and manual knee mills that accept a 3/4 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Secure the shank to the full recommended engagement depth in the tool holder and verify runout before beginning cuts. Follow the tool manufacturer and machine builder guidelines for appropriate cutting parameters based on workpiece material.

Technical Specifications

• Cutting Diameter: 3/4 inch
• Shank Diameter: 3/4 inch
• Number of Flutes: 4
• Geometry: Corner Chamfer
• End Type: Single End
• Coating: AlTiN (Aluminum Titanium Nitride)
• Construction: Solid Carbide
• Country of Origin: USA
• Weight: 1.42 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: TDD50-4048S-ALT-D
