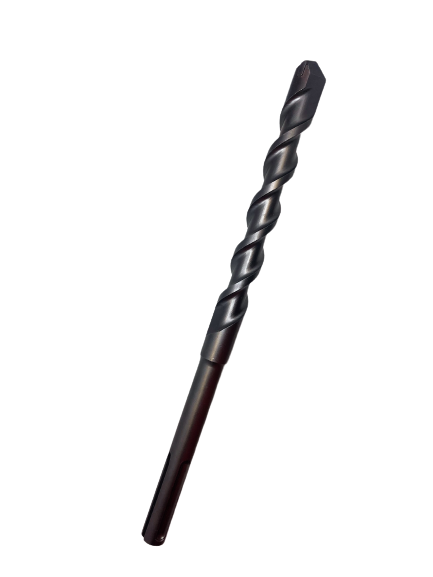

Eagle Cutting Tool SDSM-12500-12-D Sds Max Drill Bit

Product Description

The EAGLE CUTTING TOOL SDSM-12500-12-D is an SDS Max rotary hammer drill bit built for heavy-duty concrete, masonry, and aggregate drilling applications. It features a 1-1/4 inch cutting diameter and a 12 inch overall length (OAL), with a 1 inch length of cut (LOC). The SDS Max shank interface provides positive chuck engagement under high-torque and high-impact conditions, making it a reliable choice for demanding core work in structural concrete and block. Licensed electricians, plumbers, HVAC installers, and general contractors reach for this bit when drilling large-diameter penetrations through concrete floors, walls, and foundations.

This drill bit is suited for use with SDS Max rotary hammers in both residential and commercial construction settings. Typical applications include sleeve and conduit penetrations, pipe and duct chases through concrete or CMU block, and anchor bolt holes in structural slabs. Its 1-1/4 inch diameter accommodates common conduit and pipe sleeve sizing used in trade rough-in work.

Key Features

• 1-1/4 inch cutting diameter for large-diameter penetration work in concrete and masonry
• 12 inch OAL with 1 inch length of cut for reach in deep or staged drilling
• SDS Max shank provides secure, tool-free chuck engagement with compatible rotary hammers
• Designed for high-impact rotary hammer use in concrete, block, and aggregate materials
• Minimum order quantity of 1 for single-unit procurement

Compatibility

Designed for use with SDS Max rotary hammers. Compatible with any tool accepting the standard SDS Max shank interface.

Installation Notes

Installation requires an SDS Max rotary hammer; standard drill/drivers and SDS Plus tools are not compatible with this shank type. Before drilling, verify there are no embedded rebar, conduit, or post-tension cables in the work area using a concrete scanning device. Wear appropriate PPE including eye protection and hearing protection during operation. Follow applicable local building codes and trade standards when creating penetrations through fire-rated assemblies or structural members.

Technical Specifications

• Shank Type: SDS Max
• Cutting Diameter: 1-1/4 inches
• Overall Length (OAL): 12 inches
• Length of Cut (LOC): 1 inch
• Weight: 2.75 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: SDSM-12500-12-D
