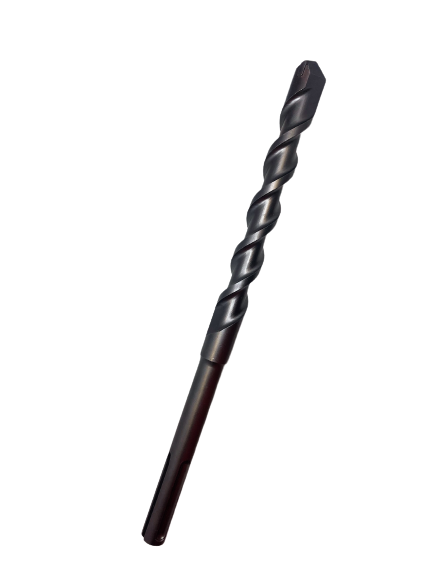

Eagle Cutting Tool SDSM-10000-23-D Sds Max Drill Bit

Product Description

The EAGLE CUTTING TOOL SDSM-10000-23-D is a 1-inch diameter SDS Max rotary hammer drill bit, 23 inches in overall length, made in the USA. This bit is designed for use in SDS Max rotary hammers and is built for heavy-duty concrete, masonry, and block drilling applications. The SDS Max shank interface locks into compatible hammer tools and allows for efficient energy transfer during high-impact drilling. Electricians, plumbers, HVAC installers, and general contractors reach for bits in this class when penetrating thick concrete slabs, foundations, or masonry walls to route conduit, pipe, or duct sleeves.

This bit suits commercial and residential construction and renovation work where large-diameter holes must be driven through reinforced or unreinforced concrete, block, and brick. The 23-inch length provides the clearance needed for deep penetrations such as through-wall and through-foundation passes. Typical applications include core drilling for pipe sleeves, anchor bolt holes, and conduit penetrations in structural concrete. This bit is for use with SDS Max class rotary hammer tools only and is not compatible with SDS Plus or standard round-shank drills.

Key Features

• 1-inch cutting diameter for large-bore concrete and masonry holes
• 23-inch overall length for deep through-wall and through-slab penetrations
• SDS Max shank for positive tool engagement and high-impact energy transfer
• USA manufactured
• Weighs 2.75 pounds — substantial, heavy-duty construction

Compatibility

Designed for use with SDS Max rotary hammer tools. Not compatible with SDS Plus chucks or standard keyed and keyless drill chucks.

Installation Notes

Installation of this bit requires an SDS Max rotary hammer; insert the shank fully into the chuck until it clicks and locks before operating. Always wear eye protection and a dust mask or respirator when drilling concrete or masonry, as silica dust is a respiratory hazard. Follow OSHA Table 1 silica control requirements where applicable. Inspect the bit for carbide tip damage or shank wear before each use and remove it from service if cracks or deformation are observed.

Technical Specifications

• Cutting Diameter: 1 inch
• Overall Length: 23 inches
• Shank Type: SDS Max
• Weight: 2.75 pounds
• Country of Origin: USA

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: SDSM-10000-23-D
