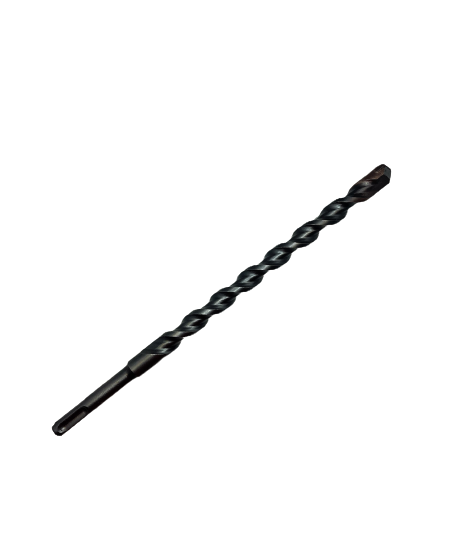

Eagle Cutting Tool SDS4350-2188-10-D Sds Masonry Drill Bit

Product Description

The EAGLE CUTTING TOOL SDS4350-2188-10-D is a carbide-tipped SDS masonry drill bit built for rotary hammer drilling into concrete, block, brick, and similar masonry materials. The bit measures 7/32 inch in diameter with a 10 inch overall length, giving technicians and tradespeople the reach needed for deeper anchor, conduit, and fastener applications. The delta tip geometry is designed to improve penetration rate and chip evacuation during hammer drilling. At 0.25 pounds, it is lightweight and easy to handle on overhead or confined-space jobs.

This bit is suited for residential and commercial masonry work where an SDS-style rotary hammer is the tool of choice. Typical applications include drilling anchor bolt holes, running conduit through masonry walls, setting fasteners in concrete block, and core preparatory work. The 7/32 inch diameter is a common size for light-duty anchor and screw applications in block and poured concrete. Electricians, plumbers, HVAC installers, and general contractors regularly reach for this size when penetrating masonry for trade rough-in work.

Key Features

• Carbide tip provides hardness and wear resistance against abrasive masonry materials
• Delta tip geometry promotes faster penetration and improved debris clearance
• SDS shank for secure, tool-free bit changes in SDS rotary hammers
• 10 inch overall length extends reach for deeper hole requirements
• 7/32 inch diameter suits anchor and fastener drilling in concrete and block

Compatibility

Designed for use with SDS-style rotary hammers accepting standard SDS shank bits. Compatible with common SDS rotary hammer models used in masonry drilling applications across residential and commercial jobsites.

Installation Notes

Installation is performed by licensed tradespeople or qualified contractors using an SDS rotary hammer. Confirm the hammer tool is powered off and the bit is fully seated and locked in the chuck before drilling. Wear appropriate eye and respiratory protection when drilling masonry, as silica dust is a recognized health hazard. Follow applicable OSHA silica exposure guidelines and local jobsite safety requirements.

Technical Specifications

• Shank Type: SDS
• Tip Material: Carbide
• Tip Geometry: Delta
• Drill Diameter: 7/32 inch
• Overall Length (OAL): 10 inches
• Weight: 0.25 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: SDS4350-2188-10-D
