Eagle Cutting Tool SCD100-009-D Carbide Jobber Drill 9/64

Product Description

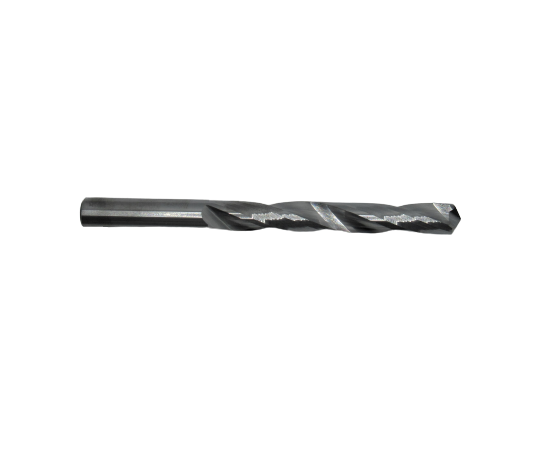

The EAGLE CUTTING TOOL SCD100-009-D is a solid carbide jobber-length drill bit ground to a 9/64 inch diameter. Solid carbide construction delivers greater hardness and heat resistance than high-speed steel, making this bit well suited for drilling ferrous metals, cast iron, hardened alloys, and abrasive composite materials. The jobber-length flute geometry provides a balance of rigidity and reach appropriate for general-purpose production drilling. Machinists, tool-and-die makers, and maintenance technicians working with CNC machining centers or conventional drill presses rely on this type of bit for repeatable, accurate hole sizes in demanding materials.

This drill is manufactured in the USA and is intended for use in machine tool applications where dimensional accuracy and tool life are priorities. The 9/64 inch diameter suits applications requiring precise small-diameter holes in ferrous and non-ferrous workpieces. It is appropriate for use in job shops, production facilities, and maintenance environments where solid carbide tooling is specified over coated or HSS alternatives to extend tool life between changes.

Key Features

• Solid carbide construction for superior hardness and wear resistance compared to HSS
• Jobber-length flute design balances rigidity with adequate reach for standard drilling applications
• 9/64 inch diameter for precise small-bore hole requirements
• Manufactured in the USA
• Minimum order quantity of 1, suitable for single-bit replacement or tooling stock

Compatibility

Designed as a general-purpose solid carbide jobber drill for use in CNC machining centers, drill presses, and other machine tool spindles accepting standard straight-shank drill bits at 9/64 inch diameter.

Installation Notes

Installation and use should be performed by qualified machinists or tooling technicians familiar with proper chuck clamping, spindle speeds, and feed rates for solid carbide tooling. Secure the shank fully in the chuck or collet before operation and verify runout before beginning a cut. Solid carbide is brittle relative to HSS — avoid lateral loading or interrupted cuts that could cause chipping or fracture. Follow the tooling manufacturer and machine builder recommendations for speeds, feeds, and cutting fluid application appropriate to the workpiece material.

Technical Specifications

• Diameter: 9/64 inch
• Construction: Solid Carbide
• Length Type: Jobber Length
• Country of Origin: USA
• Weight: 0.5 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: SCD100-009-D
