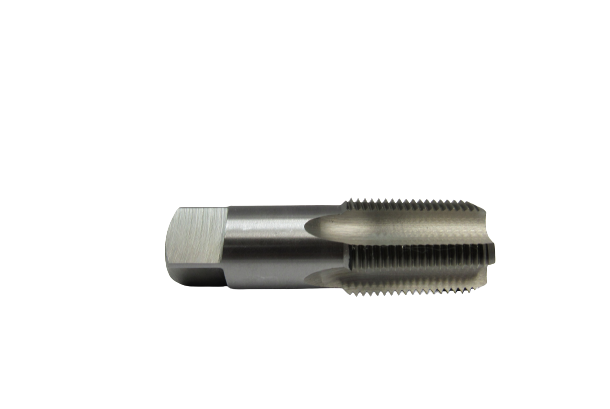

Eagle Cutting Tool PT-20000-115-I Hss Pipe Tap 2in 11.5

Product Description

The EAGLE CUTTING TOOL PT-20000-115-I is a 2-inch, 11-1/2 TPI high-speed steel (HSS) NPT pipe tap designed for cutting internal tapered pipe threads in metal pipe fittings, couplings, and threaded port applications. Manufactured to NPT thread form standards, it produces a 1-degree 47-minute taper that allows threaded connections to seal under pressure. At 2.12 pounds, this is a full-size production tap intended for use in drill presses, lathes, or heavy-duty tapping machines. Plumbers, pipefitters, and machinists working on industrial piping systems reach for this tool when field-cutting or re-tapping 2-inch NPT threads in steel, cast iron, or similar ferrous materials.

This tap is suited for threading 2-inch schedule pipe fittings, valve bodies, manifold ports, and fabricated steel assemblies where a standard NPT thread form is required. It is commonly used in commercial plumbing, industrial process piping, and mechanical contractor shops. The HSS construction holds up to the cutting demands of carbon steel and other ferrous pipe materials encountered in trade applications.

Key Features

• 2-inch nominal size with 11-1/2 threads per inch (TPI) NPT thread form
• High-speed steel (HSS) construction for durability in ferrous metal cutting
• NPT taper thread profile for pressure-capable pipe connections
• Import-grade tool suitable for production and repair tapping operations
• Compatible with standard tap wrenches, drill presses, and tapping machines

Compatibility

Designed for cutting 2-inch 11-1/2 TPI NPT internal pipe threads in ferrous materials including carbon steel and cast iron pipe fittings and threaded components.

Installation Notes

This tap should be installed and operated by qualified pipefitters, plumbers, or machinists familiar with pipe thread cutting procedures. Always apply cutting oil generously during the tapping operation and back off the tap periodically to clear chips and prevent binding. Secure the workpiece firmly in a vise before beginning; do not attempt to hand-tap 2-inch NPT threads without a rigid tapping fixture or machine. Verify thread fit with a proper NPT thread gauge before pressurizing any connection.

Technical Specifications

• Thread Size: 2 inches
• Threads Per Inch (TPI): 11.5
• Thread Form: NPT (National Pipe Taper)
• Material: High-Speed Steel (HSS)
• Weight: 2.12 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: PT-20000-115-I
