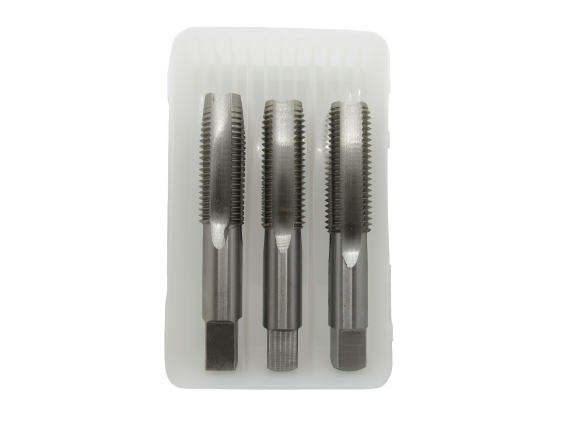

Eagle Cutting Tool MT-160-200-T-I M16x2 Hss Metric Taper Tap

Product Description

The EAGLE CUTTING TOOL MT-160-200-T-I is a high-speed steel (HSS) metric taper tap designed to cut M16.0 x 2.00 internal threads. Taper taps feature a gradual chamfer along the first several threads, which distributes cutting forces across multiple teeth and makes thread starting easier in through-holes and blind holes with ample depth. This tool is suited for machinists, pipefitters, maintenance technicians, and trade professionals who need reliable metric thread creation in ferrous and non-ferrous materials. At 0.38 pounds, it is a single-piece hand or machine tap intended for production and field use.

This tap is used to cut M16.0 x 2.00 metric coarse threads in a range of materials including mild steel, aluminum, brass, and cast iron. It is appropriate for general industrial, mechanical, and maintenance applications where a standard metric taper tap is required. The taper entry chamfer makes it particularly well-suited as the first tap used in a sequential tapping operation or as a standalone tap in through-hole applications.

Key Features

• M16.0 x 2.00 metric coarse thread form for standard metric fastener compatibility
• HSS construction provides good hardness and wear resistance for cutting threads in common metals
• Taper chamfer design distributes cutting load across leading threads for easier starts and reduced breakage risk
• Suitable for both hand tapping and machine tapping operations
• Minimum order quantity of 1 for single-unit purchasing

Compatibility

Designed as a standard M16.0 x 2.00 metric coarse taper tap suitable for use with compatible tap handles, T-handle wrenches, and CNC or manual tapping machines that accept the appropriate shank size.

Installation Notes

Tapping operations should be performed by a qualified machinist or trade professional familiar with thread-cutting procedures. Always secure the workpiece and use appropriate cutting fluid to reduce friction and extend tool life. Apply steady, even pressure and back off periodically to break chips, especially in deeper holes. Discard worn or chipped taps immediately to avoid thread damage or tool breakage in the workpiece.

Technical Specifications

• Thread Size: M16.0 x 2.00
• Thread Standard: Metric Coarse
• Tap Type: Taper
• Material: High-Speed Steel (HSS)
• Weight: 0.38 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MT-160-200-T-I
