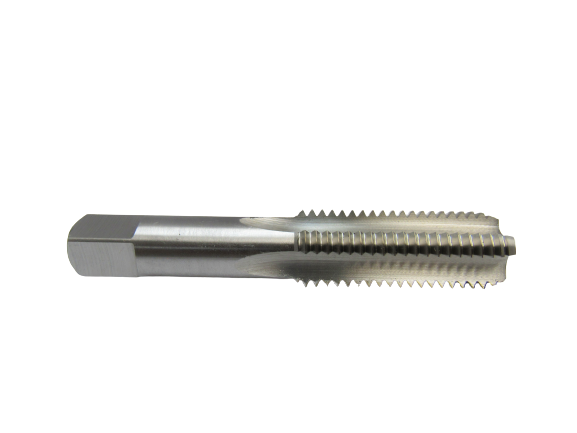

Eagle Cutting Tool MT-140-200-B-I M14x2.00 Hss Metric Tap

Product Description

The EAGLE CUTTING TOOL MT-140-200-B-I is a high-speed steel (HSS) metric bottom tap designed to cut internal threads in through-holes and blind holes where full threading to the bottom of the bore is required. With an M14 diameter and 2.00 mm pitch, this tap produces standard coarse metric threads used across a wide range of mechanical and structural fastening applications. It is an import-grade tool suited for general machining, maintenance, and repair work where a cost-effective threading solution is needed.

This bottom tap is used in metalworking, fabrication, and maintenance applications that require threading close to the bottom of a blind hole. Machinists, millwrights, and maintenance technicians reach for a bottom tap as the final step in a plug-and-bottom tap sequence when thread engagement depth is critical. It is appropriate for use in ferrous metals, non-ferrous metals, and softer alloys at standard M14x2.00 thread specifications.

Key Features

• M14 x 2.00 mm pitch for standard coarse metric thread profile
• Bottom tap geometry allows threading to the full depth of a blind hole
• High-speed steel (HSS) construction provides hardness and wear resistance for general-purpose tapping
• Import-grade pricing suits production, repair, and maintenance shop budgets
• Minimum order quantity of 1 for flexible purchasing

Compatibility

Designed as a standard M14x2.00 metric bottom tap compatible with any tap wrench, T-handle, or machine holder sized for the corresponding tap shank. Suitable for use wherever an M14 coarse metric thread is specified.

Installation Notes

A licensed machinist or experienced maintenance technician should verify the correct tap drill size before beginning. Always use cutting fluid appropriate for the workpiece material to extend tool life and improve thread quality. Follow the bottom tap with adequate chip clearing to prevent binding, especially in deep blind holes. Secure the workpiece fully before tapping to prevent movement that can break the tap.

Technical Specifications

• Thread Size: M14 x 2.00 mm pitch
• Thread Standard: Metric coarse
Tap Type: Bottom tap
• Material: High-Speed Steel (HSS)
• Weight: 0.38 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MT-140-200-B-I
