Eagle Cutting Tool MHD-220-150-I Metric Hex Die M22x1.50

Product Description

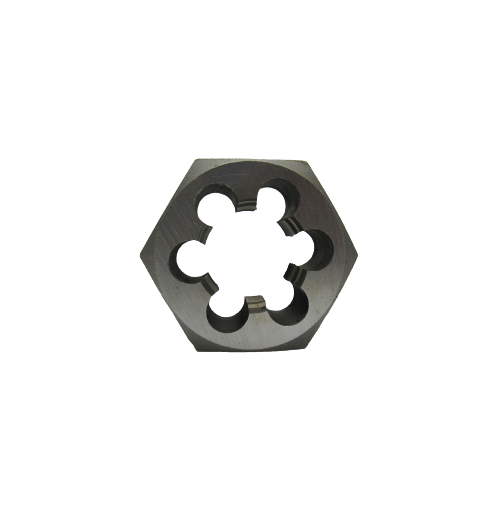

The EAGLE CUTTING TOOL MHD-220-150-I is a carbon steel metric hex die sized M22.0 x 1.50, used to cut or rethread external metric threads on rod, bolt stock, or cylindrical workpieces. The hex body profile allows standard die stock handles or a wrench to drive the die, making it practical for shop use and field repair work. At 0.48 pounds, it is a compact, single-piece cutting tool suited for machinists, maintenance technicians, pipefitters, and general metalworkers who need a reliable metric threading solution in a common coarse-pitch size.

This die is appropriate for cutting M22.0 x 1.50 threads in production, maintenance, and repair applications. The 1.50 mm pitch is a fine pitch relative to the standard M22 coarse pitch, making it well suited for applications requiring finer thread engagement such as hydraulic fittings, precision fasteners, and metric shaft ends. It is used in both shop and field settings wherever metric external threading or thread chasing is required on ferrous and mild non-ferrous stock.

Key Features

• M22.0 x 1.50 metric thread profile for cutting or chasing external threads
• Hex body design compatible with standard die stock handles and open-end wrenches
• Carbon steel construction provides sufficient hardness for threading mild steel and similar materials
• Lightweight at 0.48 pounds for easy handling and portability
• Import-grade tooling suitable for general maintenance, repair, and low-to-medium volume threading tasks

Compatibility

Designed as a standard metric hex die for use with die stock handles and wrenches sized to fit the hex body. Suitable for cutting M22.0 x 1.50 external threads on rod, bolt blanks, and cylindrical stock in general metalworking and maintenance applications.

Installation Notes

Threading operations should be performed by a qualified machinist or tradesperson familiar with hand-threading tools. Secure the workpiece firmly before engaging the die, and apply appropriate cutting oil to extend tool life and improve thread quality. Advance the die in short increments, backing off periodically to break chips and prevent binding. Inspect the die for wear or chipping before use and do not force a damaged die onto stock.

Technical Specifications

• Thread Size: M22.0 x 1.50
• Thread Standard: Metric
• Body Style: Hex
• Material: Carbon Steel
• Weight: 0.48 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MHD-220-150-I
