Eagle Cutting Tool MHD-200-250-I Metric Hex Die

Product Description

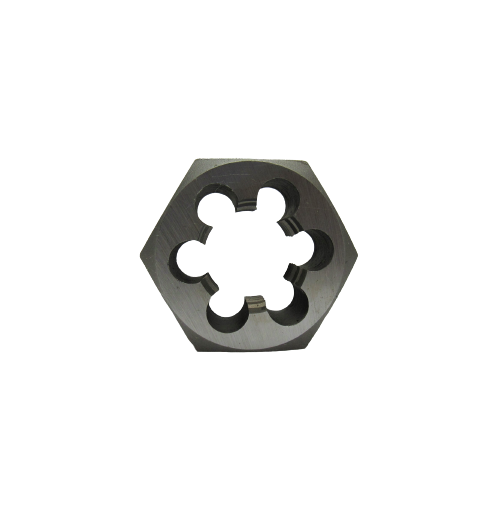

The EAGLE CUTTING TOOL MHD-200-250-I is a carbon steel metric hex die designed for cutting external M20.0x2.50 threads. This die fits standard hex die stocks and handles, allowing machinists, pipefitters, and maintenance technicians to cut or rethread metric fastener threads by hand or with a die stock. The M20.0 designation indicates a 20 mm nominal diameter, and the 2.50 pitch specifies 2.50 mm between thread crests. The carbon steel construction provides adequate hardness for threading mild steel, aluminum, brass, and similar materials in shop and field environments.

This hex die is suited for maintenance and repair operations where metric threads need to be cut or restored on bolts, studs, and rod stock. Typical applications include mechanical assembly work, equipment repair, and fabrication tasks requiring M20.0x2.50 thread profiles. The hex body design allows the die to be driven with a standard hex die wrench or adjustable die stock sized for the die's hex across-flats dimension. It is a common choice for trade shops, maintenance facilities, and toolroom inventory.

Key Features

• M20.0x2.50 thread profile for cutting standard coarse metric external threads
• Hex body design compatible with standard hex die stocks and wrenches
• Carbon steel construction suitable for threading mild steel, aluminum, and brass
• Compact weight of 0.48 pounds for easy handling and portability
• Minimum order quantity of 1 unit for single-piece procurement

Compatibility

Designed as an OEM-style replacement or standard-stock hex die for use with hex die stocks and wrenches sized to accept the MHD-200-250-I hex body dimensions.

Installation Notes

This die is installed by a machinist or qualified maintenance technician using a properly sized hex die stock or adjustable die wrench. Secure the workpiece before threading and apply cutting oil to the die and material to extend die life and improve thread quality. Advance the die in short increments and back off periodically to break chips. Inspect the die for wear or damage before each use and replace if cutting edges are dull or chipped.

Technical Specifications

• Thread Size: M20.0x2.50
• Die Type: Hex Die
• Material: Carbon Steel
• Thread Standard: Metric
• Weight: 0.48 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MHD-200-250-I
