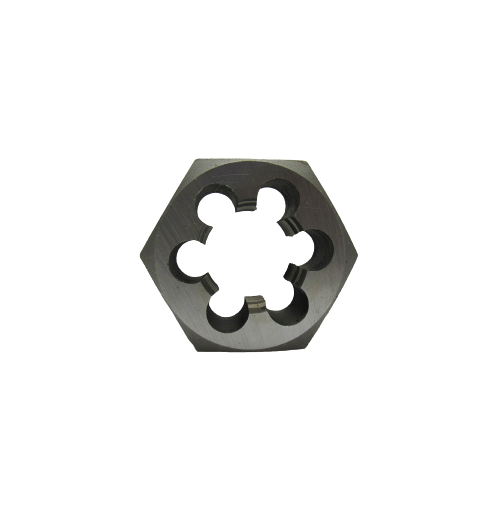

Eagle Cutting Tool MHD-140-200-I Metric Hex Die

Product Description

The EAGLE CUTTING TOOL MHD-140-200-I is a carbon steel metric hex die designed for cutting external M14.0x2.00 threads. It is used to create or recut standard metric threads on bolts, rods, and round stock. The hexagonal body allows the die to be driven and adjusted with a standard die stock or wrench. Machinists, pipefitters, and maintenance technicians working on metric-fastener applications will find this die a practical hand-threading solution. At 0.48 pounds, it is a compact, easy-to-handle tool suited for bench work and field repair alike.

This die is built for M14.0 thread diameter with a 2.00mm pitch, which is the standard coarse pitch for that diameter in the metric thread system. It is appropriate for use in general manufacturing, maintenance and repair operations, and fabrication shops where metric fasteners are common. The hex configuration makes it compatible with standard die stocks sized for hex dies.

Key Features

• M14.0x2.00 thread specification for standard metric coarse-pitch threading
• Hexagonal body design for secure engagement with die stocks and wrenches
• Carbon steel construction for cutting threads in mild steel, aluminum, and similar materials
• Compact weight of 0.48 pounds for easy handling during bench or field work
• Minimum order quantity of 1, suitable for single-unit purchase

Compatibility

Designed for use with standard hex die stocks sized to accept a hex die for M14.0x2.00 metric coarse-pitch threading applications.

Installation Notes

This die should be installed in a properly sized hex die stock before use. Secure the workpiece firmly in a vise before threading. Apply cutting oil generously to the die and workpiece to reduce heat and extend tool life. Advance the die slowly and back off periodically to clear chips and prevent binding.

Technical Specifications

• Thread Size: M14.0x2.00
• Thread Pitch: 2.00mm
• Die Type: Hex
• Material: Carbon Steel
• Weight: 0.48 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MHD-140-200-I
