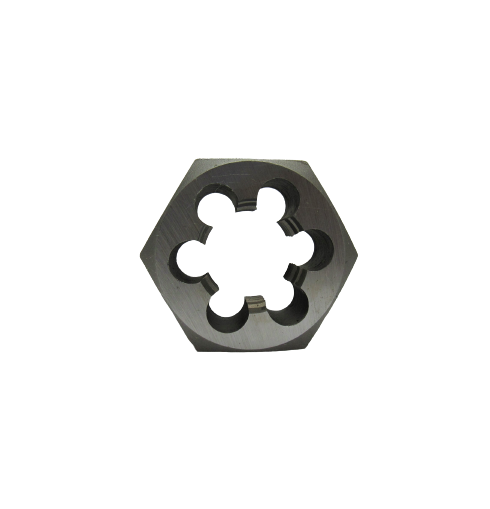

Eagle Cutting Tool MHD-080-125-I M8x1.25 Hex Die

Product Description

The EAGLE CUTTING TOOL MHD-080-125-I is a carbon steel metric hex die sized for M8x1.25 thread specifications. Hex dies are used to cut or recut external threads on round stock, bolts, and fasteners. This die fits standard hex die stocks and wrenches, allowing machinists, pipefitters, and maintenance technicians to produce clean metric threads in the field or shop. The M8 diameter paired with a 1.25 mm pitch makes it one of the most common coarse-thread metric sizes encountered in general mechanical and structural applications.

This hex die is suited for threading mild steel, aluminum, and similarly machinable materials. It is a practical addition to any tool kit where metric thread repair or new thread cutting on M8 rod or bolt stock is a routine task. Import-grade carbon construction keeps cost in line for general-purpose threading work where high-alloy tooling is not required.

Key Features

• M8x1.25 metric coarse thread specification for wide compatibility with standard metric fastener stock
• Hex body design fits standard hex die stocks and adjustable die wrenches
• Carbon steel construction suitable for threading mild steel, aluminum, and soft metals
• Compact and lightweight at 0.48 pounds for easy portability
• Minimum order quantity of 1 for single-unit purchasing flexibility

Compatibility

Designed for use with standard hex die stocks and wrenches that accept the corresponding hex die size. Intended for cutting M8x1.25 metric coarse external threads on round stock and compatible fastener materials.

Installation Notes

Threading operations should be performed by a qualified machinist or maintenance technician familiar with hand threading tools. Secure the workpiece firmly before applying the die to prevent movement during thread cutting. Apply cutting oil generously to reduce heat and extend die life. Advance the die in short increments and back off periodically to clear chips, especially when working with steel stock.

Technical Specifications

• Thread Size: M8x1.25
• Thread Standard: Metric Coarse
• Die Type: Hex Die
• Material: Carbon Steel
• Weight: 0.48 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: MHD-080-125-I
