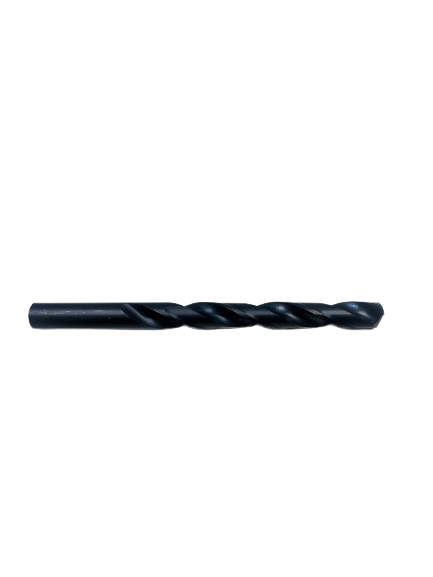

Eagle Cutting Tool H200-020-D 5/16 Hss Jobber Drill Bit

Product Description

The EAGLE CUTTING TOOL H200-020-D is a 5/16 inch high-speed steel (HSS) heavy-duty jobber-length drill bit ground with a 135-degree split point. The split point geometry reduces walking on contact, allowing the bit to start cutting immediately without a center punch on most materials. Manufactured in the USA, this bit is built for demanding production and maintenance drilling tasks. It suits ferrous metals, structural steel, cast iron, and hard plastics where a standard jobber bit may deflect or wear prematurely.

The H200-020-D is suited for use in drill presses, magnetic drills, and heavy-duty hand drills in industrial, mechanical, and trade shop environments. Electricians, pipefitters, millwrights, and general maintenance technicians commonly reach for this size when drilling knockout holes, clearance holes for fasteners, and conduit or pipe hanger anchor points through steel plate and structural members.

Key Features

• 5/16 inch diameter high-speed steel construction for heat and wear resistance
• 135-degree split point reduces thrust and eliminates bit walk on hard surfaces
• Heavy-duty jobber-length profile provides reach while maintaining rigidity
• Made in the USA to industrial cutting-tool standards
• Compatible with standard drill chucks accepting 5/16 inch straight shanks

Compatibility

Designed as an OEM-style replacement or direct-use drill bit compatible with any drill press, magnetic base drill, or hand drill equipped with a chuck rated for 5/16 inch straight-shank tooling.

Installation Notes

Secure the bit firmly in the chuck and verify it runs true before cutting. Use appropriate cutting fluid or coolant when drilling steel to extend bit life and prevent overheating. Reduce feed pressure as the bit breaks through to avoid grabbing. Inspect the cutting edges for wear or chipping before each use and replace if the split point shows signs of rounding.

Technical Specifications

• Drill Diameter: 5/16 inches
• Point Angle: 135 degrees split point
• Drill Type: Heavy-duty jobber length
• Material: High-speed steel (HSS)
• Country of Origin: USA
• Weight: 1.2 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: H200-020-D
