Eagle Cutting Tool H200-013-D Hss Jobber Drill Bit 13/64 in

Product Description

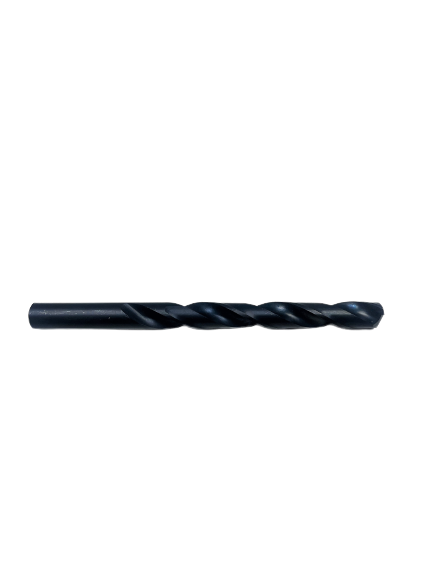

The EAGLE CUTTING TOOL H200-013-D is a 13/64-inch high-speed steel (HSS) heavy-duty jobber-length drill bit with a 135-degree split point. It is designed for drilling through metal, wood, plastics, and other common trade materials in demanding production or field environments. The 135-degree split point geometry reduces walking on contact and lowers the thrust force needed to start a hole without a center punch. This bit is manufactured in the USA and suited for use by machinists, pipefitters, electricians, and general mechanical contractors who require consistent, repeatable results in heavy-duty drilling applications.

This drill bit is appropriate for use in hand-held electric drills, drill presses, and magnetic-base drills. The heavy-duty construction makes it a practical choice for structural steel fabrication, conduit work, mechanical piping, and general metalworking tasks where standard jobber bits wear prematurely. The jobber-length flute provides a balance of reach and rigidity suited to most common hole-depth requirements encountered in trade work.

Key Features

• 13/64-inch diameter for precise fractional sizing in metal and structural applications
• 135-degree split point reduces bit walking and lowers required entry force
• High-speed steel (HSS) construction provides heat and wear resistance during prolonged use
• Heavy-duty designation indicates reinforced geometry for harder materials and higher feed rates
• Jobber-length flute balances reach with lateral rigidity
• Made in the USA

Compatibility

Designed as a standard jobber-length drill bit compatible with 3-jaw drill chucks and keyed drill chuck systems accepting round-shank bits up to the appropriate chuck capacity.

Installation Notes

This bit is installed and operated by machinists, electricians, pipefitters, and other trade professionals using standard drill equipment. Ensure the chuck is fully tightened and the workpiece is securely clamped before drilling. Use appropriate cutting fluid when drilling ferrous metals to extend bit life and reduce heat buildup. Disconnect or de-energize all power to any drill press before changing bits.

Technical Specifications

• Diameter: 13/64 inches
• Point Angle: 135 degrees split point
• Material: High-Speed Steel (HSS)
• Series: Heavy Duty Jobber Length
• Country of Origin: USA
• Weight: 0.5 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: H200-013-D
