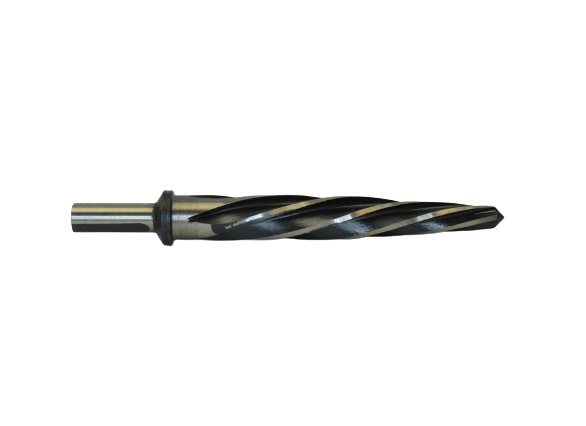

Eagle Cutting Tool CR925-048-I Hss Taper Reamer 3/4 in

Product Description

The EAGLE CUTTING TOOL CR925-048-I is a high-speed steel (HSS) taper car reamer with a 3/4 inch reaming diameter and a 1/2 inch straight shank. Designed for enlarging and finishing tapered holes to precise dimensions, this import-grade reamer delivers consistent material removal in metalworking, automotive, and general machining applications. The HSS construction provides the hardness and wear resistance needed to work through ferrous and non-ferrous metals. At 0.06 pounds, it is a compact, lightweight tool suited for bench work or machine use. Machinists, tool-and-die workers, and automotive technicians are the primary users of this tool type.

This reamer is well suited for light production and maintenance shop use where tapered hole finishing is required. The 1/2 inch shank makes it compatible with standard drill presses, milling machine collets, and hand-held drill chucks of the appropriate size. It is commonly used in automotive repair for pin bore and alignment work, as well as in general fabrication where tapered fits are specified. The import designation indicates this is a cost-effective option for shops that require reliable performance at a lower per-unit cost than domestic premium-grade tooling.

Key Features

• 3/4 inch taper reaming diameter for consistent hole finishing
• High-speed steel (HSS) construction for hardness and wear resistance across ferrous and non-ferrous metals
• 1/2 inch straight shank compatible with standard drill chucks and collets
• Lightweight at 0.06 pounds for easy handling and reduced spindle load
• Import-grade value suitable for maintenance, automotive, and general machining use

Compatibility

Designed as an OEM-style replacement or standard fit for use in drill presses, milling machines, and hand drills accepting a 1/2 inch straight shank tool.

Installation Notes

This reamer is installed by machinists or automotive technicians using standard machine tool practices. Ensure the workpiece is securely clamped and the spindle or chuck is fully tightened before operation. Apply cutting fluid appropriate to the workpiece material to extend tool life and improve finish quality. Never force the reamer through an undersized hole — pre-drill to the recommended pilot diameter before reaming.

Technical Specifications

• Reaming Diameter: 3/4 inch
• Shank Diameter: 1/2 inch
• Shank Type: Straight
• Material: High-Speed Steel (HSS)
• Weight: 0.06 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CR925-048-I
