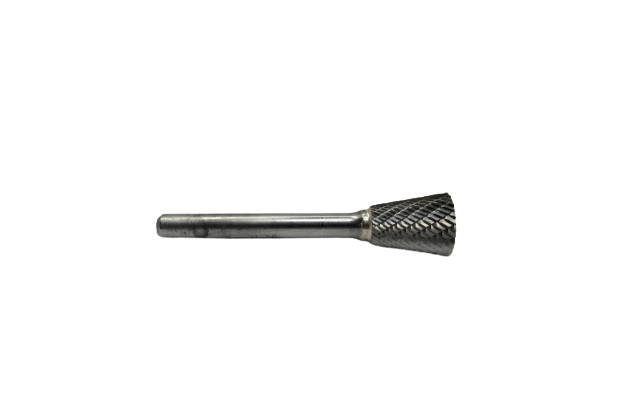

Eagle Cutting Tool CB-SN-4-D Inverted Cone Carbide Burr 1/2 in

Product Description

The EAGLE CUTTING TOOL CB-SN-4-D is an inverted cone carbide burr designed for material removal, deburring, and shaping in metalworking and fabrication applications. Available in both single cut and double cut configurations, this burr mounts to a standard die grinder or rotary tool and delivers controlled stock removal on ferrous and non-ferrous metals. The 1/2 inch head size makes it suited for detail work in recessed areas, countersinking, and undercutting operations. At 0.13 pounds, it is lightweight and easy to handle during extended use. Machinists, welders, pipefitters, and fabricators commonly reach for this style of burr when working inside tight geometries or cleaning up weld beads in confined spaces.

The inverted cone profile is a staple in metal fabrication shops, maintenance facilities, and pipe welding environments. It is particularly effective for enlarging holes, undercutting, spot facing, and deburring the backside of drilled or punched holes. The SN-4 designation corresponds to the standard inverted cone shape, and the 1/2 inch cutting diameter makes it a versatile choice for general-purpose die grinder work across a range of base materials including steel, aluminum, and cast iron.

Key Features

• Inverted cone geometry for undercutting, countersinking, and backside deburring
• Available in single cut and double cut configurations for finish or aggressive stock removal
• 1/2 inch cutting head diameter for detail and confined-space applications
• Lightweight at 0.13 pounds for reduced operator fatigue during extended use
• Compatible with standard die grinders and rotary tools

Compatibility

Designed as an OEM-style replacement or direct-use carbide burr for standard die grinders and rotary tools accepting the appropriate shank diameter. No specific model compatibility data was provided by the manufacturer for this SKU.

Installation Notes

Carbide burrs are installed and changed by qualified machinists, fabricators, or maintenance technicians. Always power down and disconnect the die grinder or rotary tool before changing burrs. Secure the burr firmly in the collet to the manufacturer-specified torque before operation, and confirm the tool RPM rating does not exceed the burr's maximum rated speed. Wear appropriate PPE including eye protection and gloves when operating rotary cutting tools.

Technical Specifications

• Cutting Head Diameter: 1/2 inch
• Burr Shape: Inverted Cone (SN-4)
• Cut Type: Single Cut / Double Cut
• Weight: 0.13 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SN-4-D
