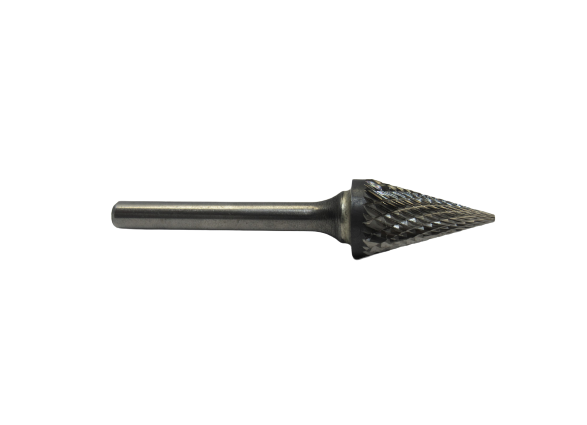

Eagle Cutting Tool CB-SM-5-D Cone Carbide Burr 0.5 Inch

Product Description

The EAGLE CUTTING TOOL CB-SM-5-D is a cone-shaped carbide burr designed for material removal, shaping, and deburring in metalworking and fabrication applications. The SM-5 designation indicates a half-inch cone profile, and the D/C designation references a double cut configuration, which produces a finer finish and faster stock removal compared to single cut patterns. This burr is intended for use with die grinders, rotary tools, and flexible shaft machines. At 0.13 pounds, it is a compact, lightweight tool suited for precision hand-tool work in tight or contoured areas. Licensed tradespeople in welding, pipefitting, and general metalworking rely on this type of burr for weld cleanup, porting, and surface prep.

This cone carbide burr is applicable across a range of metalworking tasks including ferrous and non-ferrous metal shaping, weld bead blending, and chamfering in fabrication shops, maintenance facilities, and field service environments. The cone geometry allows access to angled surfaces, inside chamfers, and countersunk features where flat or cylindrical burrs cannot reach effectively. It is suited for both production and repair work where controlled material removal is required.

Key Features

• Cone profile geometry for angled surface access and chamfering
• Double cut configuration for faster material removal and smoother finish
• Carbide construction for durability and extended tool life on hard metals
• Lightweight at 0.13 pounds for reduced operator fatigue during extended use
• Compatible with standard die grinders and rotary tool chucks

Compatibility

Designed as an OEM-style replacement or direct-use carbide burr for standard die grinders and rotary tools accepting half-inch shank or head configurations in metalworking and fabrication applications.

Installation Notes

Carbide burrs are installed and replaced by machinists, fabricators, pipefitters, and maintenance technicians using standard collet-style die grinders. Always ensure the tool is fully seated and the collet is tightened before operation. Disconnect or power down the rotary tool before changing burrs. Always wear appropriate eye protection and gloves when operating rotary cutting tools, and confirm the burr RPM rating meets or exceeds the grinder speed before use.

Technical Specifications

• Cut Type: Double Cut
• Profile: Cone
• Head Diameter: 0.5 inches
• Weight: 0.13 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SM-5-D
