Eagle Cutting Tool CB-SM-3-L6-D Cone Burr 6 in Oal

Product Description

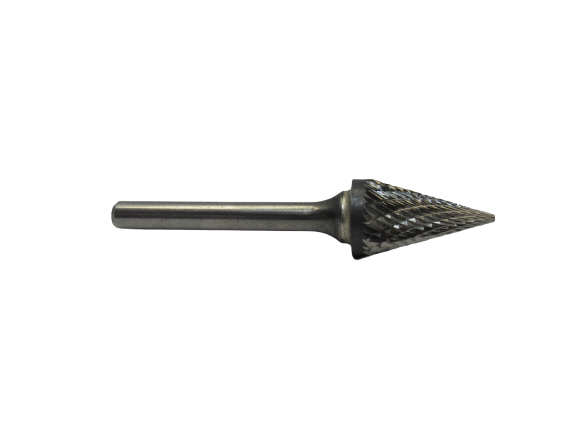

The EAGLE CUTTING TOOL CB-SM-3-L6-D is a double cut carbide rotary burr in a cone shape configuration, designed for material removal, deburring, and surface blending in metal fabrication and industrial maintenance applications. The SM-3 head profile delivers an aggressive cut geometry suited for contouring in tight or angled workspaces. With a 0.25 inch shank diameter and a 6 inch overall length, this burr provides extended reach for deep cavity work that standard-length burrs cannot access. Machinists, fabricators, and die grinders operators choose double cut carbide burrs for their ability to cut in multiple directions, reducing heat buildup and producing a smoother finish pass.

This burr is well suited for use in metal fabrication shops, weld prep and cleanup, casting finishing, and general deburring on ferrous and non-ferrous metals. The extended 6 inch overall length makes it a practical choice when working inside tubing, deep ports, or recessed cavities where a standard burr shank would not reach. It fits any die grinder or rotary tool accepting a 0.25 inch collet and is a common tool for maintenance technicians, pipefitters, and welders performing finishing work in the field or shop.

Key Features

• Cone shape SM-3 head profile for angled material removal and contouring
• Double cut flute pattern for bidirectional cutting and reduced chatter
• 6 inch overall length provides extended reach into deep cavities and recessed areas
• 0.25 inch shank diameter fits standard die grinder and rotary tool collets
• Solid carbide construction for durability on ferrous and non-ferrous metals

Compatibility

Designed for use with die grinders and rotary tools fitted with a 0.25 inch collet. Suitable for deburring, shaping, and finishing operations on steel, aluminum, cast iron, and similar materials.

Installation Notes

This burr is installed by a machinist, fabricator, or maintenance technician using a standard die grinder or rotary tool with a matching 0.25 inch collet. Ensure the collet nut is fully tightened before operation and confirm the tool RPM rating is appropriate for the burr diameter. Always wear eye protection and appropriate PPE when operating rotary cutting tools. Do not exceed the rated RPM of the burr or the host tool.

Technical Specifications

• Head Shape: Cone (SM-3)
• Cut Type: Double Cut
• Shank Diameter: 0.25 inches
• Overall Length (OAL): 6 inches
• Weight: 0.12 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SM-3-L6-D
