Eagle Cutting Tool CB-SM-1-L6-D Cone Carbide Burr 6in Oal

Product Description

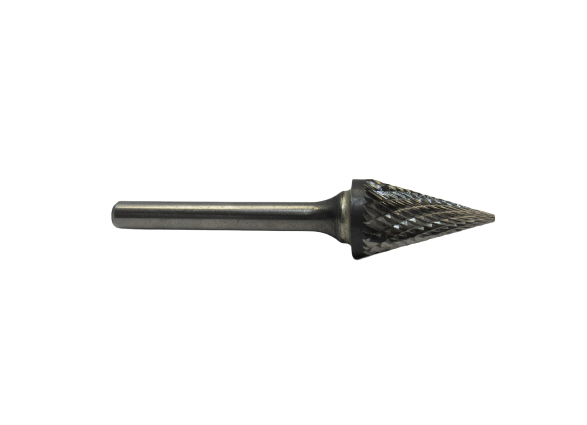

The EAGLE CUTTING TOOL CB-SM-1-L6-D is a cone-shaped double-cut carbide burr with a 0.25-inch cutting head and a 6-inch overall length (OAL). Designed for aggressive material removal and contour finishing, this burr is used with die grinders and rotary tools across metalworking, fabrication, and maintenance applications. The double-cut pattern produces a cross-hatched flute geometry that removes material faster than single-cut styles while generating a smoother surface finish. At 0.12 pounds, it is a lightweight tool suited for extended use in tight or overhead work areas.

This carbide burr is a fit for metal fabricators, pipefitters, welders, and maintenance technicians who need to deburr, shape, or grind in confined spaces or on contoured surfaces. The cone shape is particularly useful for working into V-grooves, chamfering edges, and cleaning weld joints. The 6-inch OAL provides extended reach for applications where a standard-length burr cannot access the work surface. It is suited for use on steel, cast iron, aluminum, and other hard metals.

Key Features

• Cone shape geometry for V-groove work, chamfering, and contour grinding
• Double-cut flute pattern for fast material removal and smoother finish
• 6-inch overall length for extended reach in deep or confined spaces
• 0.25-inch cutting head diameter for precision work in tight areas
• Carbide construction for durability on ferrous and non-ferrous metals

Compatibility

Designed as an OEM-style replacement or standard-stock carbide burr for use with die grinders and rotary tools accepting a standard shank size consistent with the SM-1 series designation.

Installation Notes

Installation is performed by qualified machinists, fabricators, or maintenance technicians. Secure the burr shank fully into the collet of the die grinder before use and confirm the collet nut is tightened to the tool manufacturer specification. Always wear eye protection and appropriate PPE when operating rotary cutting tools. Do not exceed the maximum RPM rating of the die grinder or the burr shank.

Technical Specifications

• Shape: Cone (SM-1)
• Cut Type: Double Cut
• Cutting Head Diameter: 0.25 inches
• Overall Length (OAL): 6 inches
• Weight: 0.12 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SM-1-L6-D
