Eagle Cutting Tool CB-SM-1-D Cone Carbide Burr 0.25 Inches

Product Description

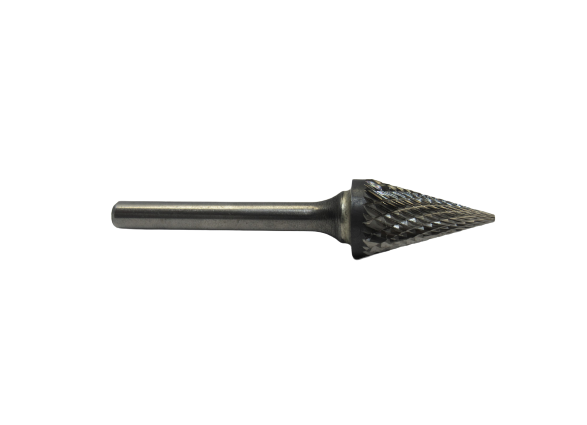

The EAGLE CUTTING TOOL CB-SM-1-D is a cone-shaped carbide burr designed for material removal, shaping, and deburring in metalworking and fabrication applications. Based on the SM-1 designation, this burr features a 0.25-inch shank and is available in single cut and double cut configurations, each suited to different stock removal rates and finish requirements. Single cut delivers smooth finishes with moderate stock removal, while double cut provides faster cutting action with less operator fatigue. At 0.13 pounds, it is a lightweight rotary tool accessory built for use in die grinders and rotary tools common to welding, machining, and metalworking trades.

This cone burr is suited for professionals working with steel, cast iron, aluminum, and other metals in fabrication shops, maintenance facilities, and field repair environments. The cone profile is particularly effective for working inside cavities, cleaning weld joints, chamfering holes, and contouring irregular surfaces. It is used by machinists, welders, pipefitters, and metal fabricators who require precise material removal in tight or angled areas where flat or cylindrical burrs cannot reach effectively.

Key Features

• Cone geometry for access to cavities, weld seams, and angled surfaces
• 0.25-inch shank fits standard die grinder and rotary tool collets
• Single cut and double cut configuration for controlled finish or aggressive stock removal
• Carbide construction for extended tool life on ferrous and non-ferrous metals
• Lightweight at 0.13 pounds for reduced operator fatigue during extended use

Compatibility

Designed as a standard rotary carbide burr replacement for use with die grinders and rotary tools accepting a 0.25-inch shank collet.

Installation Notes

Install and remove carbide burrs only with the die grinder or rotary tool fully powered off and the collet nut loosened with the appropriate wrench. Secure the shank fully into the collet before tightening. Always wear appropriate eye protection and ensure workpiece is secured before operation. Do not exceed the maximum RPM rating of the tool or the burr.

Technical Specifications

• Shank Size: 0.25 inches
• Burr Shape: Cone
• Cut Type: Single Cut and Double Cut
• Weight: 0.13 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SM-1-D
