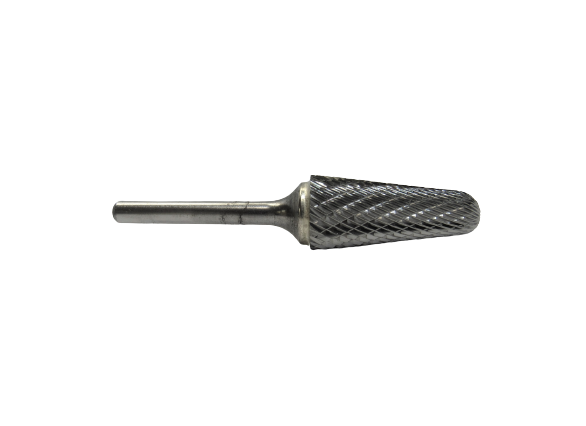

Eagle Cutting Tool CB-SL-5-D Carbide Burr Single Cut

Product Description

The EAGLE CUTTING TOOL CB-SL-5-D is a single-cut carbide burr designed for material removal, deburring, and surface finishing in metal fabrication and machining applications. Built with a 5/8 inch cutting diameter and a 14-degree included angle, this burr delivers controlled stock removal with a smooth finish pass. The single-cut flute geometry produces longer, continuous chips, reducing clogging and heat buildup during use. It is suited for use with die grinders and rotary tools operated by machinists, tool-and-die workers, welders, and fabricators working on steel, cast iron, and similar ferrous materials.

This carbide burr is used in industrial, shop, and field fabrication environments where precise material removal is required. Typical applications include weld blending, port matching, cavity work, and edge chamfering on metal workpieces. The 14-degree included angle profile makes it well suited for conical and countersinking operations where a controlled taper geometry is needed. It is appropriate for both production and maintenance repair operations across light and heavy manufacturing settings.

Key Features

• 5/8 inch cutting diameter for mid-range stock removal capacity
• 14-degree included angle geometry for conical and chamfering work
• Single-cut flute pattern produces cleaner chips and reduces loading
• Carbide construction provides hardness and wear resistance on ferrous metals
• Compact weight of 0.13 pounds suitable for extended handheld tool use

Compatibility

Designed as an OEM-style replacement or direct-use carbide burr compatible with standard die grinder and rotary tool collet systems accepting the appropriate shank diameter.

Installation Notes

This burr is installed and operated by machinists, welders, or fabricators using a die grinder or compatible rotary tool. Always secure the shank fully into the collet and verify the locking mechanism is tight before operation. Wear appropriate PPE including eye protection and gloves, and ensure the workpiece is clamped or secured before beginning material removal. Do not exceed the maximum RPM rating of the tool or the burr.

Technical Specifications

• Cutting Diameter: 5/8 inches
• Included Angle: 14 degrees
• Cut Type: Single Cut
• Weight: 0.13 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SL-5-D
