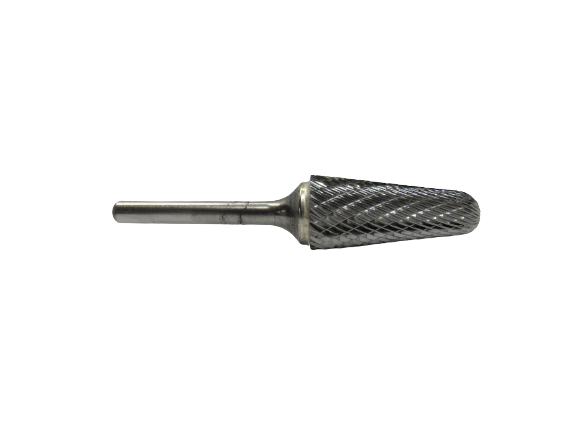

Eagle Cutting Tool CB-SL-4-D Carbide Burr 1/2 Inch

Product Description

The EAGLE CUTTING TOOL CB-SL-4-D is a carbide burr designed for material removal, deburring, and finishing work in metal fabrication and mechanical trade applications. The SL-4 designation indicates a 1/2 inch cutting diameter with a 14-degree included angle, a geometry suited for work in tapered slots, angled cavities, and chamfered edges. The single cut and double cut flute configuration allows the technician to select cut style based on material type and desired finish. At 0.13 pounds, it is a lightweight rotary tool accessory built for use in die grinders and rotary tool systems.

This burr is suited for use in fabrication shops, HVAC sheet metal work, plumbing rough-in, electrical conduit work, and general mechanical trade environments where controlled metal removal is required. The 14-degree included angle makes it appropriate for working in tapered bores and angled surfaces where straight-profile burrs would not seat correctly. It is typically used by pipefitters, sheet metal workers, machinists, and maintenance technicians performing deburring, chamfering, and porting operations on steel, cast iron, aluminum, and similar metals.

Key Features

• 1/2 inch cutting diameter with 14-degree included angle for tapered and angled surface work
• Single cut and double cut flute options support a range of materials and finish requirements
• Carbide construction provides hardness and wear resistance across ferrous and non-ferrous metals
• Lightweight at 0.13 pounds for reduced operator fatigue during extended use
• Minimum order quantity of 1 allows single-unit purchase for immediate replacement needs

Compatibility

Designed as an OEM-style replacement or direct-fit rotary burr for standard die grinders and rotary tool systems accepting 1/2 inch shank carbide burrs.

Installation Notes

Installation is performed by qualified fabricators or trade technicians using a compatible die grinder or rotary tool. Ensure the tool is powered off and unplugged before inserting or removing the burr from the collet. Verify that the collet size matches the burr shank diameter before tightening. Always wear appropriate eye protection and follow applicable shop safety protocols when operating rotary cutting tools.

Technical Specifications

• Cutting Diameter: 1/2 inch
• Included Angle: 14 degrees
• Cut Type: Single Cut / Double Cut
• Weight: 0.13 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SL-4-D
