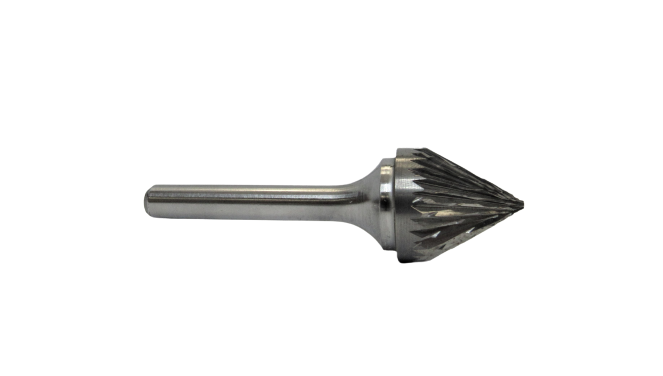

Eagle Cutting Tool CB-SJ-6-D Carbide Burr 60 Degree

Product Description

The EAGLE CUTTING TOOL CB-SJ-6-D is a carbide rotary burr designed for material removal, deburring, and shaping in metalworking and fabrication applications. This SJ-6 style burr features a 60-degree included angle and is offered in both single cut and double cut configurations, making it adaptable to a range of stock removal rates and surface finish requirements. At 5/8 inch cutting diameter, it fits standard die grinders and rotary tools used daily in machining, welding prep, and tool-and-die work. The carbide construction delivers hardness and heat resistance that outlasts high-speed steel alternatives in demanding cutting environments.

This burr is suited for use on ferrous and non-ferrous metals, cast iron, hardened steel, and similar hard materials encountered in fabrication shops, maintenance facilities, and industrial settings. The SJ-6 inverted cone profile with a 60-degree included angle is commonly applied to countersinking, chamfering, spot-facing, and cleaning weld joints in tight or angled access areas. Machinists, tool-and-die makers, welders, and maintenance technicians are the primary users of this style of rotary burr.

Key Features

• SJ-6 inverted cone profile with 60-degree included angle for chamfering and countersinking work
• 5/8 inch cutting diameter fits standard die grinder collets
• Carbide construction provides hardness and extended tool life on hard metals
• Available in single cut and double cut for varied stock removal and finish control
• Lightweight at 0.13 pounds for reduced operator fatigue during extended use

Compatibility

Designed for use with standard die grinders and rotary tools accepting the appropriate shank diameter. Suitable for cutting, shaping, and finishing ferrous metals, non-ferrous metals, and hard materials in general fabrication and machining applications.

Installation Notes

Installation and use of rotary burrs is performed by machinists, fabricators, and maintenance technicians using die grinders or rotary tools. Ensure the grinder is fully powered off and the collet is secure before inserting or removing the burr. Always match the burr shank to the collet size of the tool and confirm the RPM rating of the burr meets or exceeds the grinder speed setting. Wear appropriate eye protection and secure the workpiece before operation.

Technical Specifications

• Style: SJ-6 Inverted Cone
• Cutting Diameter: 5/8 inch
• Included Angle: 60 degrees
• Cut Type: Single Cut and Double Cut
• Material: Carbide
• Weight: 0.13 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SJ-6-D
