Eagle Cutting Tool CB-SJ-2-D Carbide Burr 5/16 Inch

Product Description

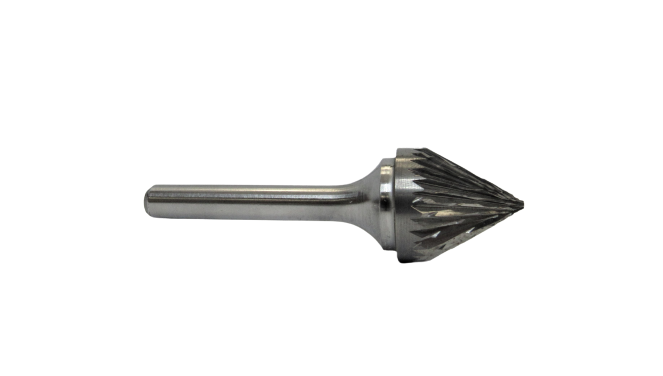

The EAGLE CUTTING TOOL CB-SJ-2-D is a 5/16 inch carbide burr designed for material removal, deburring, and shaping in metalworking and fabrication applications. Built with a 60-degree included angle, this burr is available in both single cut and double cut configurations, giving technicians control over stock removal rate and surface finish. At 0.13 pounds, it is lightweight and suited for use with standard pneumatic or electric die grinders. Machinists, fabricators, and maintenance trades reach for this style of burr when working on ferrous metals, non-ferrous metals, and hard plastics where precise contouring is required.

This carbide burr is used in fabrication shops, maintenance facilities, and industrial settings where controlled material removal is needed on contoured or hard-to-reach surfaces. Typical applications include weld blending, port matching, mold finishing, and general deburring of machined components. The 60-degree included angle geometry suits conical and chamfering work on inside and outside edges of workpieces.

Key Features

• 5/16 inch diameter carbide burr head for precise material removal
• 60-degree included angle geometry suited for chamfering and conical grinding tasks
• Available in single cut and double cut configurations for varied stock removal rates
• Lightweight at 0.13 pounds for reduced operator fatigue during extended use
• Compatible with standard die grinder collets accepting 5/16 inch shanks

Compatibility

Designed as an OEM-style replacement or standard accessory for die grinders and rotary tools accepting 5/16 inch shank carbide burrs.

Installation Notes

Carbide burrs are installed by qualified machinists or fabricators using standard die grinders with appropriate collet size. Ensure the die grinder is powered off and depressurized before inserting or removing the burr. Secure the shank fully within the collet to the depth recommended by the grinder manufacturer before operation. Always wear appropriate PPE including eye protection and gloves when operating rotary cutting tools.

Technical Specifications

• Head Diameter: 5/16 inches
• Included Angle: 60 degrees
• Cut Type: Single Cut and Double Cut
• Weight: 0.13 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SJ-2-D
