Eagle Cutting Tool CB-SH-2-L6-D Flame Carbide Burr 6 in

Product Description

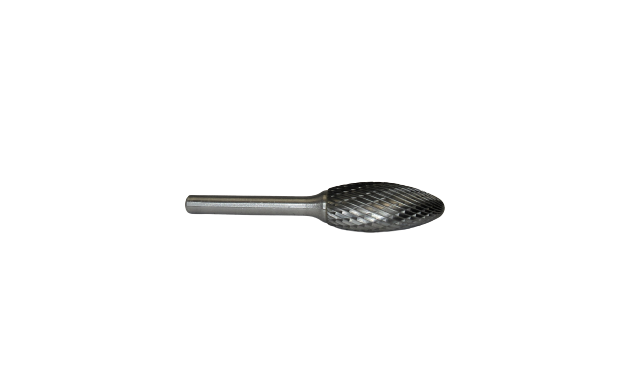

The EAGLE CUTTING TOOL CB-SH-2-L6-D is a flame-profile carbide burr designed for material removal, deburring, and shaping in metal fabrication and maintenance work. Built with a double cut (also called cross cut) flute pattern, this burr removes material efficiently while producing a smoother finish than single cut alternatives. The SH-2 head measures 5/16 inches in diameter and mounts on a shank for use in standard die grinders and rotary tools. At 6 inches overall length, it provides extended reach into recessed areas, weld joints, and confined cavities that shorter burrs cannot access.

This burr is suited for HVAC fabricators, pipefitters, plumbers, and general metalworkers who need to shape, blend, or clean up weld beads, ports, and bores. The flame profile is especially effective in concave surfaces, rounded ports, and die cavities. Typical applications include deburring pipe ends, smoothing weld flash, porting metal components, and cleaning up cast iron or steel fittings. The 6-inch OAL makes it a practical choice for deep-reach work where standard-length burrs fall short.

Key Features

• Flame (SH-2) profile designed for concave surface shaping and porting
• Double cut flute pattern for fast material removal with reduced chatter
• 5/16 inch head diameter for detail work in tight areas
• 6 inch overall length provides extended reach into deep cavities and recessed joints
• Solid carbide construction for durability on ferrous and non-ferrous metals

Compatibility

Designed for use with standard die grinders and rotary tools that accept the appropriate shank diameter. Suitable for cutting and finishing ferrous metals, non-ferrous metals, and hard plastics.

Installation Notes

A licensed or qualified tradesperson should secure the burr firmly in the collet of the die grinder before operation and verify the tool RPM rating does not exceed the burr manufacturer specification. Always wear appropriate eye protection and secure the workpiece before grinding. Inspect the burr for cracks or damage before each use and replace if any wear is detected.

Technical Specifications

• Profile: Flame (SH-2)
• Cut Type: Double Cut
• Head Diameter: 5/16 inches
• Overall Length (OAL): 6 inches
• Weight: 0.12 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SH-2-L6-D
