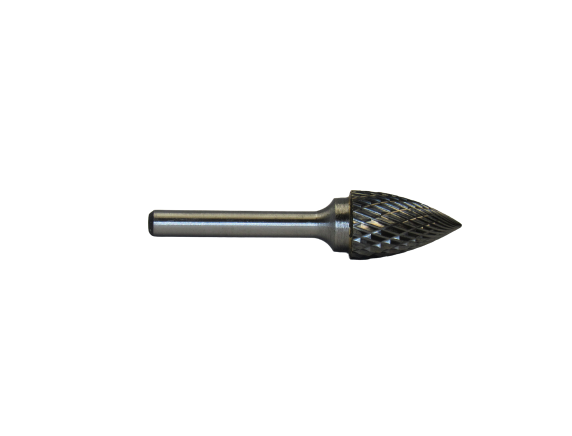

Eagle Cutting Tool CB-SG-1-D Tree Point Carbide Burr

Product Description

The EAGLE CUTTING TOOL CB-SG-1-D is a tree point style carbide rotary burr designed for material removal, shaping, and deburring in metalworking and fabrication applications. The SG-1 designation indicates a 0.25-inch shank size, and the burr is available in both single cut and double cut configurations. Single cut produces a smoother finish with lower chip load, while double cut removes material faster and is preferred for aggressive stock removal on harder materials. This burr is used with die grinders, rotary tools, and flex-shaft machines by machinists, welders, pipefitters, and tool-and-die professionals.

The CB-SG-1-D fits standard 0.25-inch collet die grinders and is suited for work on ferrous metals, non-ferrous metals, and hard plastics. Tree point geometry allows access into contoured surfaces, weld joints, and irregular cavities where flat or cylindrical profiles cannot reach. It is commonly used in fabrication shops, maintenance facilities, and field pipe work where precise material removal or surface preparation is required before welding or finishing.

Key Features

• Tree point burr geometry for contoured surface access and cavity work
• Single cut and double cut options for finish control versus material removal rate
• 0.25-inch shank fits standard die grinder collets without adapters
• Carbide construction provides hardness and heat resistance for extended tool life
• Minimum order quantity of 1 unit for flexible procurement

Compatibility

Designed as an OEM-style replacement and standard fitment for 0.25-inch collet die grinders and rotary tool systems used in metalworking and fabrication.

Installation Notes

Installation is performed by machinists, welders, or maintenance technicians using a standard die grinder with a 0.25-inch collet. Ensure the tool is fully de-energized and the collet is completely tightened before operation. Do not exceed the maximum RPM rating of the die grinder or the burr. Eye protection and appropriate PPE are required when operating rotary burrs.

Technical Specifications

• Shank Size: 0.25 inches
• Burr Style: Tree Point
• Cut Type: Single Cut and Double Cut
• Weight: 0.13 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SG-1-D
