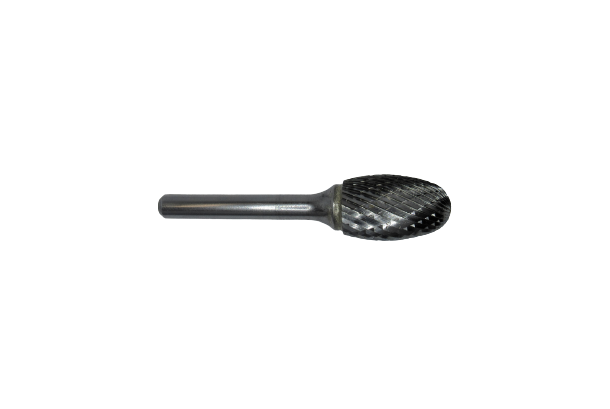

Eagle Cutting Tool CB-SE-7-D Oval Double Cut Carbide Burr

Product Description

The EAGLE CUTTING TOOL CB-SE-7-D is an oval-shaped double cut carbide rotary burr designed for aggressive material removal and finishing in metalworking, fabrication, and machining applications. The double cut pattern produces a cross-hatched tooth geometry that shears material in both rotary directions, reducing cutter load and generating finer chips than a single cut burr. The 3/4 inch head diameter suits medium to large cavity work, contour shaping, and deburring on ferrous and non-ferrous metals. Machinists, tool-and-die technicians, and fabricators typically run this style of burr in a die grinder or rotary tool at appropriate RPM for the material being cut.

This burr is suited for use on steel, cast iron, aluminum, copper, and similar metals in production and repair settings. Common applications include port matching, weld blending, gasket surface cleanup, and mold cavity finishing. The oval profile allows access to curved internal surfaces and radiused pockets where flat-ended or cylindrical burrs cannot reach effectively. It fits standard die grinder collets and flexible shaft tools used in both shop and field environments.

Key Features

• Oval (SE-7) profile for curved surface and internal radius work
• Double cut tooth geometry for faster stock removal and reduced chatter
• 3/4 inch head diameter for medium to large material removal passes
• Carbide construction for hardness and wear resistance across a wide range of metals
• Compatible with standard die grinder and rotary tool collet systems

Compatibility

Designed as an OEM-style replacement or direct-use carbide burr fitting standard die grinder collets and rotary tool spindles commonly used in metalworking and fabrication environments.

Installation Notes

Carbide rotary burrs should be installed and operated by qualified machinists or fabricators familiar with rotary cutting tool safety. Ensure the die grinder or rotary tool is fully powered down and unplugged before inserting or removing the burr from the collet. Always verify the collet size matches the burr shank diameter before securing, and do not exceed the maximum RPM rating for the burr profile and diameter. Eye protection and appropriate PPE are required during operation.

Technical Specifications

• Head Profile: Oval (SE-7)
• Cut Type: Double Cut
• Head Diameter: 3/4 inch
• Weight: 0.13 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SE-7-D
