Eagle Cutting Tool CB-SC-7-D Cylindrical Ball End Burr

Product Description

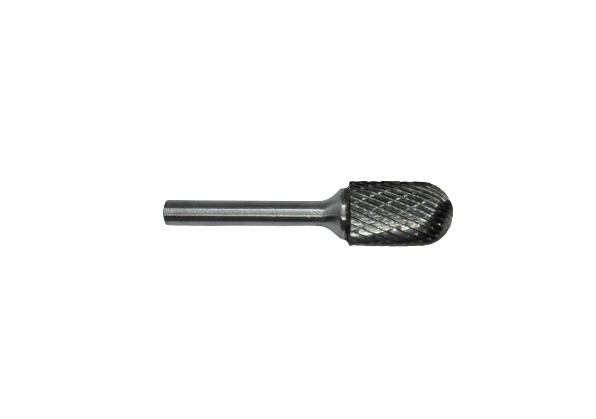

The EAGLE CUTTING TOOL CB-SC-7-D is a cylindrical ball end double cut carbide burr with a 3/4-inch head diameter. Carbide burrs in this configuration are designed for aggressive material removal, deburring, shaping, and grinding on metals, hardened steels, aluminum, and similar materials. The double cut pattern produces two intersecting helical flutes that shear material efficiently while generating a smoother finish than single cut versions. These tools are used in die grinders, rotary tools, and high-speed air tools by machinists, fabricators, welders, and tool and die professionals.

The CB-SC-7-D cylindrical ball end profile is well suited for tasks that require access to both flat surfaces and contoured or radiused edges in a single tool pass. Common applications include port and surface finishing on engine components, weld seam cleanup, mold and die work, and general material removal in tight workspaces. The ball nose geometry allows blending into corners and curved surfaces without abrupt transitions. This burr is appropriate for both production shop environments and field repair work where a die grinder is the primary tool.

Key Features

• Cylindrical ball end geometry allows work on flat surfaces and radiused profiles in a single pass
• Double cut flute pattern increases material removal rate and reduces chatter compared to single cut
• 3/4-inch head diameter suits medium to large material removal tasks
• Carbide construction provides hardness and wear resistance across ferrous and non-ferrous materials
• Compatible with standard die grinder and rotary tool collets

Compatibility

Designed as an OEM-style replacement or direct-use carbide burr for standard die grinders and high-speed rotary tools accepting the appropriate shank diameter. No specific compatible model data was provided in the product input.

Installation Notes

Carbide burrs are installed and changed by machinists, fabricators, and metalworkers using the collet and wrench system of the host die grinder or rotary tool. Always disconnect the tool from the air supply or power source before changing burrs. Secure the shank fully in the collet and verify the set screw or collet nut is tightened before operation. Do not exceed the maximum RPM rating of the host tool, and always wear appropriate eye and face protection when operating rotary cutting tools.

Technical Specifications

• Head Diameter: 3/4 inch
• Cut Style: Double Cut
• Profile: Cylindrical Ball End
• Weight: 0.13 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: CB-SC-7-D
