Eagle Cutting Tool 1212XL-022-I Hss Longboy Drill 11/32 in

Product Description

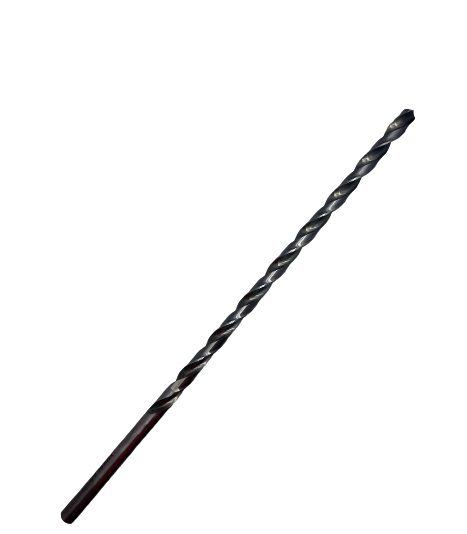

The EAGLE CUTTING TOOL 1212XL-022-I is a high-speed steel (HSS) longboy drill bit engineered for extended-reach drilling applications. With an 11/32 inch diameter and a 12 inch overall length (OAL), this bit handles deep-hole drilling in materials where standard-length bits fall short. The extended flute geometry and HSS construction allow it to cut through metal, wood, and plastics at depths that shorter bits cannot reach. Trade professionals in HVAC, plumbing, electrical, and general construction rely on longboy drills for through-wall and cross-member drilling in tight or deep installations.

This bit is suited for residential and commercial applications where extended reach is required, such as drilling through wall studs, joists, mechanical room framing, or equipment enclosures. The 11/32 inch diameter is a common size for pilot holes, anchor clearances, and conduit or tubing pass-through work. Electricians, pipefitters, and HVAC installers are the primary users of extended-length drill bits in this size class.

Key Features

• 11/32 inch cutting diameter for precise pilot and clearance holes
• 12 inch overall length provides extended reach for deep or through-material drilling
• 9 inch flute length maximizes chip evacuation in deep holes
• High-speed steel (HSS) construction resists heat buildup during extended cuts
• Minimum order quantity of 1 — available as a single unit

Compatibility

Designed as an OEM-style replacement or direct-fit longboy drill bit for standard 3-jaw drill chucks accepting straight-shank bits in the 11/32 inch size.

Installation Notes

Longboy drill bits should be installed in a drill with adequate torque and speed control to prevent bit deflection during deep-hole operations. Secure the workpiece before drilling and use cutting fluid when working through metal to extend bit life and reduce heat. Verify chuck capacity accepts the 11/32 inch shank before use. Follow applicable safety codes and wear appropriate PPE when operating rotary cutting tools.

Technical Specifications

• Cutting Diameter: 11/32 inch
• Overall Length (OAL): 12 inches
• Flute Length: 9 inches
• Material: High-Speed Steel (HSS)
• Weight: 0.24 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: 1212XL-022-I
