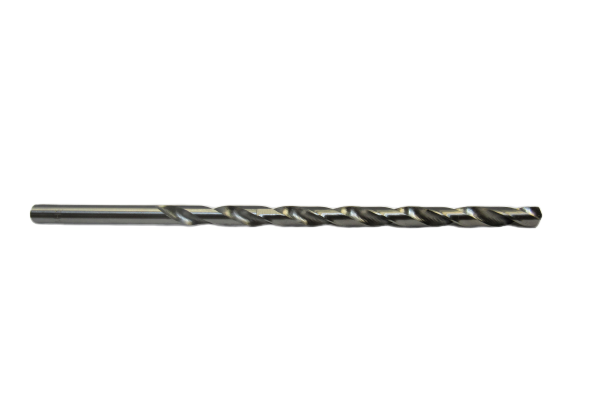

Eagle Cutting Tool 1208XL-026-I Hss Drill Bit 13/32 in

Product Description

The EAGLE CUTTING TOOL 1208XL-026-I is a high-speed steel (HSS) twist drill bit designed for metal, wood, and general-purpose drilling in trade and industrial applications. With a 13/32 inch diameter, 5 inch flute length, and 8 inch overall length (OAL), this bit handles deeper bore requirements where standard-length drills fall short. HSS construction provides the hardness and heat resistance needed for production drilling in ferrous and non-ferrous materials. It is suited for use in drill presses, hand drills, and CNC drilling setups by machinists, pipefitters, ironworkers, and general contractors.

This drill bit is appropriate for residential and commercial construction, mechanical fabrication, and maintenance applications. The extended OAL of 8 inches allows access in confined spaces or through thicker stock where jobber-length bits cannot reach. It is a standard import-grade bit intended for shops and field crews that require reliable performance at volume without the cost of premium domestic tooling.

Key Features

• 13/32 inch cutting diameter for mid-range bore sizing
• 8 inch overall length provides extended reach for deep or through-hole drilling
• 5 inch flute length aids chip evacuation in deeper cuts
• High-speed steel construction resists heat buildup during prolonged use
• Compatible with standard drill chucks accepting round shanks in this diameter range

Compatibility

Designed as a general-purpose HSS twist drill bit fitting standard three-jaw drill chucks on drill presses, corded hand drills, and CNC drilling machines that accept round-shank bits in the 13/32 inch size range.

Installation Notes

Secure the bit firmly in the chuck and verify runout before drilling. Use appropriate cutting fluid or coolant when drilling hard metals to extend tool life and prevent overheating. Wear eye protection and ensure the workpiece is properly clamped before operation. Inspect the cutting edges for wear or chipping before each use and replace if the bit shows signs of dulling.

Technical Specifications

• Diameter: 13/32 inches
• Flute Length: 5 inches
• Overall Length (OAL): 8 inches
• Material: High-Speed Steel (HSS)
• Weight: 0.3 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: 1208XL-026-I
