Eagle Cutting Tool 1208XL-023-I Hss Drill Bit 23/64 in

Product Description

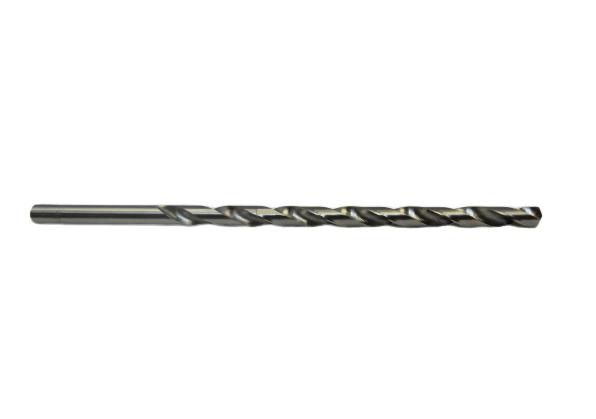

The EAGLE CUTTING TOOL 1208XL-023-I is a high-speed steel (HSS) twist drill bit sized at 23/64 inch diameter with an 8 inch overall length (OAL) and a 5 inch flute length. It is designed for drilling through metal, wood, and plastic in production and maintenance applications. The extended length provides reach in deep-hole drilling scenarios where a standard-length bit will not clear the workpiece. Licensed tradespeople and machining professionals in industrial, commercial, and field-service settings are the primary users of this bit.

This drill bit suits applications requiring extended reach beyond standard jobber-length tooling. The 23/64 inch diameter is commonly used for clearance holes, tap-drill operations, and general through-hole work in ferrous and non-ferrous metals. The extended 8 inch OAL makes it appropriate for drilling through thick stock, structural members, or stacked materials where a shorter bit would bottom out before completing the bore.

Key Features

• High-speed steel (HSS) construction provides durability in metal-drilling applications
• 23/64 inch cutting diameter suits clearance and tap-drill hole sizing
• 8 inch overall length enables reach in deep or obstructed drilling scenarios
• 5 inch flute length promotes chip evacuation during deep-hole passes
• Minimum order quantity of 1 allows single-unit purchase

Compatibility

Designed as an OEM-style replacement or direct-use extended-length HSS drill bit compatible with standard 3-jaw drill chucks and keyed chuck systems accepting a 23/64 inch shank diameter.

Installation Notes

This bit is installed and operated by machinists, pipefitters, electricians, and general tradespeople using a drill press, hand drill, or mag-drill setup. Secure the bit fully in the chuck and verify zero runout before beginning the cut. Use appropriate cutting fluid when drilling ferrous metals to extend tool life and reduce heat buildup. Always wear eye protection and ensure the workpiece is properly clamped before drilling.

Technical Specifications

• Cutting Diameter: 23/64 inches
• Overall Length (OAL): 8 inches
• Flute Length: 5 inches
• Material: High-Speed Steel (HSS)
• Weight: 0.3 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: 1208XL-023-I
