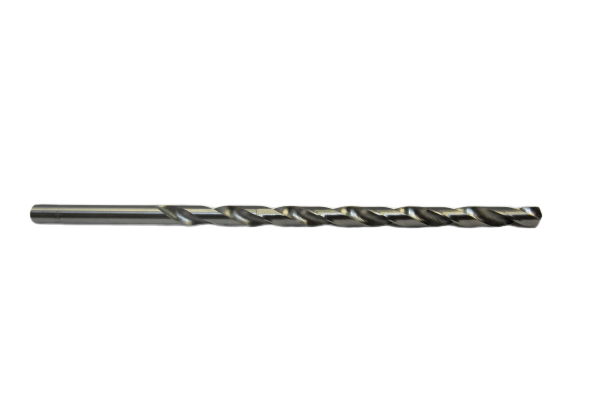

Eagle Cutting Tool 1208XL-022-I Hss Drill Bit 11/32 in

Product Description

The EAGLE CUTTING TOOL 1208XL-022-I is a high-speed steel (HSS) drill bit designed for metal, wood, and general-purpose drilling applications. With an 11/32-inch diameter, a 5-inch flute length, and an 8-inch overall length (OAL), this extended-length bit reaches deeper into workpieces than standard jobber-length drills. The HSS construction provides the hardness and heat resistance needed for production drilling in ferrous and non-ferrous materials. Machinists, fabricators, and maintenance technicians reach for extended-length drill bits when standard lengths cannot reach the bore location.

This bit is suited for use in drill presses, CNC machines, and hand-held drill motors where extended reach is required. The 11/32-inch diameter is a common size for clearance holes, tapping pre-drills, and through-hole work across light manufacturing, HVAC fabrication, plumbing rough-in, and general metalworking. The extended OAL makes it particularly useful when drilling through structural members, deep fixtures, or stacked material where a standard-length bit falls short.

Key Features

• 11/32-inch diameter suits common clearance and pre-drill applications
• 8-inch overall length provides extended reach beyond standard jobber bits
• 5-inch flute length supports chip evacuation in deep-hole drilling
• High-speed steel construction resists heat buildup during continuous use
• General-purpose geometry compatible with a wide range of materials

Compatibility

Designed as a general-purpose extended-length HSS drill bit compatible with standard drill chucks and collets accepting 11/32-inch round shanks, suitable for use in drill presses, hand drills, and CNC spindles.

Installation Notes

Secure the bit firmly in the chuck or collet before use and verify concentricity to minimize runout. Use appropriate cutting fluid or coolant when drilling ferrous metals to extend bit life and maintain cut quality. Reduce feed pressure as the bit breaks through the exit side of the material to prevent grabbing. Inspect the cutting edges before each use and replace the bit if chipping or excessive wear is present.

Technical Specifications

• Diameter: 11/32 inches
• Flute Length: 5 inches
• Overall Length (OAL): 8 inches
• Material: High-Speed Steel (HSS)
• Weight: 0.3 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: 1208XL-022-I
