Eagle Cutting Tool 1208XL-016-I Hss Drill Bit 0.25in

Product Description

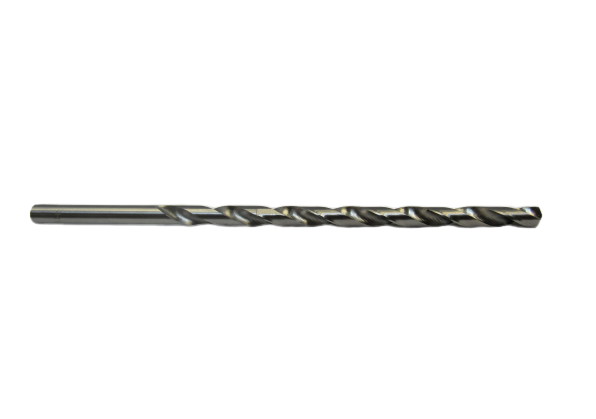

The EAGLE CUTTING TOOL 1208XL-016-I is a high-speed steel (HSS) twist drill bit designed for metal drilling applications in trade and industrial environments. With a 0.25 inch (1/4 inch) diameter, a 5 inch flute length, and an 8 inch overall length (OAL), this extended-length bit reaches deeper into workpieces than standard-length equivalents. HSS construction provides the hardness and heat resistance needed for drilling ferrous and non-ferrous metals, plastics, and composite materials. Machinists, pipefitters, electricians, and general maintenance technicians commonly use extended-length bits like this one when standard drill press or hand-drill clearance is restricted.

This bit is suited for applications where extra reach is required, such as drilling through structural steel, pipe flanges, electrical enclosures, or fabrication assemblies. The extended OAL makes it particularly useful in tight-access situations where a standard 4 inch or 6 inch bit cannot achieve full penetration. It is an import-grade bit intended for moderate-duty production use or field service work where cost-effective tooling is appropriate.

Key Features

• Extended 8 inch overall length provides reach beyond standard drill bit sizes
• 0.25 inch diameter suits common fastener clearance and pilot hole applications
• High-speed steel construction resists heat buildup during metal drilling
• 5 inch flute length supports chip evacuation over deep drilling cycles
• Import-grade tooling offers a cost-effective option for field and production use

Compatibility

Designed as a standard 0.25 inch shank drill bit compatible with keyed or keyless drill chucks on hand drills, drill presses, and magnetic base drills that accept 0.25 inch round shanks.

Installation Notes

Secure the bit firmly in the chuck before use and verify runout is within acceptable tolerance for the application. Use appropriate cutting fluid when drilling hardened steel or stainless to extend tool life. Always wear eye protection and secure the workpiece before drilling. Inspect the cutting edges before each use and retire the bit if chipping or significant wear is present.

Technical Specifications

• Diameter: 0.25 inches (1/4 inch)
• Overall Length (OAL): 8 inches
• Flute Length: 5 inches
• Material: High-Speed Steel (HSS)
• Weight: 0.08 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: 1208XL-016-I
