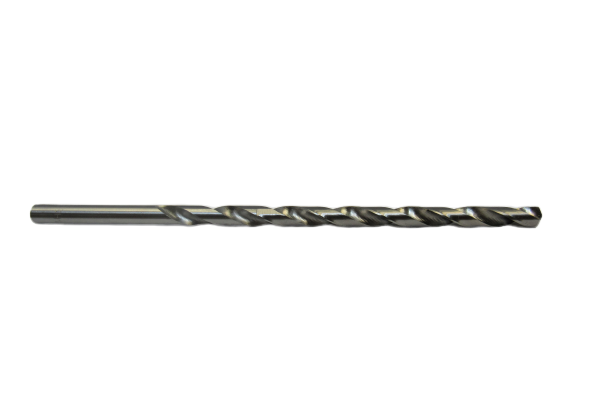

Eagle Cutting Tool 1208XL-015-I Hss Drill Bit 15/64 in

Product Description

The EAGLE CUTTING TOOL 1208XL-015-I is a high-speed steel (HSS) twist drill bit designed for general-purpose drilling in metal, wood, and plastics. With a 15/64 inch diameter and an 8 inch overall length (OAL), this extended-length bit is suited for applications requiring deeper reach than a standard jobber-length drill. The HSS construction provides the hardness and wear resistance needed for production and maintenance drilling. Machinists, tool-and-die workers, and maintenance technicians are the primary installers and users of this type of bit.

This drill bit is used in machine shops, fabrication facilities, and general maintenance environments where a longer reach is required to drill through thick stock, deep cavities, or stacked materials. The extended OAL of 8 inches accommodates setups where a standard-length bit cannot reach the work surface. The 15/64 inch diameter is a common fractional size used in close-tolerance drilling and pre-drilling for fastener clearance holes. This is an import-grade bit appropriate for moderate-duty production use or situations where cost per hole is a priority over extended tool life.

Key Features

• 15/64 inch cutting diameter for fractional-size hole requirements
• 8 inch overall length provides extended reach for deep-hole drilling applications
• High-speed steel (HSS) construction offers hardness suitable for drilling metal, wood, and plastics
• Import-grade manufacturing makes this a cost-effective option for general maintenance and production use
• Minimum order quantity of 1, allowing single-unit purchasing

Compatibility

Designed as an OEM-style replacement or direct-use drill bit compatible with standard 3-jaw drill chucks and collet systems accepting a straight shank in the 15/64 inch diameter range.

Installation Notes

This bit is installed by machinists or maintenance technicians using a drill press, milling machine, or handheld power drill with an appropriate chuck capacity. Secure the shank fully in the chuck before operation and verify the workpiece is clamped or fixtured to prevent movement. Use appropriate cutting fluid when drilling ferrous metals to extend bit life and improve hole quality. Inspect the cutting edges for wear or chipping before each use and replace the bit if the edge is degraded.

Technical Specifications

• Cutting Diameter: 15/64 inch
• Overall Length (OAL): 8 inches
• Flute Length / Shank: 5 inches
• Material: High-Speed Steel (HSS)
• Weight: 0.08 pounds
• Minimum Order Quantity: 1

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: 1208XL-015-I
