Eagle Cutting Tool 1090D-046-I 23/32 in Drill Bit

Product Description

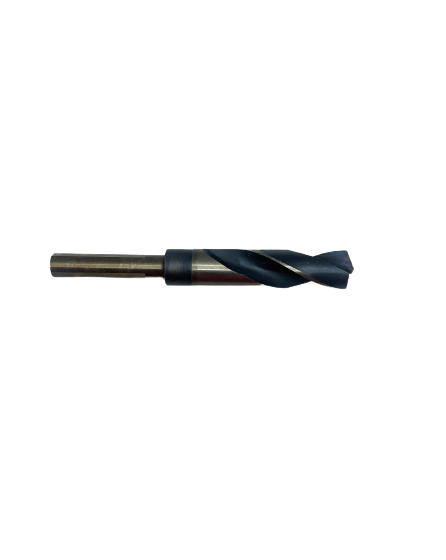

The EAGLE CUTTING TOOL 1090D-046-I is a 23/32 inch Black Gold Dynamo self-centering twist drill bit with a 1/2 inch shank. It is designed for precision drilling in metal, wood, and composite materials across a range of trade and industrial applications. The Black Gold surface treatment improves heat resistance and extends cutting life compared to standard high-speed steel bits. The self-centering geometry reduces bit walk at the start of a hole, helping machinists, fabricators, and skilled tradespeople achieve clean, accurate bores without a center punch.

This drill bit is suited for use in stationary drill presses, magnetic-base drills, and heavy-duty hand drills where a 1/2 inch chuck is standard. The 23/32 inch diameter makes it appropriate for bolt-clearance holes, conduit knockouts, pilot bores, and similar tasks that fall between common fractional sizes. It is an import-grade bit intended for shops and field crews that require reliable performance at a practical cost per unit.

Key Features

• 23/32 inch cutting diameter for precise fractional sizing between common drill bit sizes
• Black Gold surface treatment for improved heat resistance and extended tool life
• Self-centering point geometry reduces bit walk and improves hole accuracy
• 1/2 inch shank compatible with standard 1/2 inch drill chucks and drill presses
• Import-grade construction balances performance and cost for high-volume drilling tasks

Compatibility

Designed for use in any drill press or hand drill fitted with a 1/2 inch or larger chuck. Suitable for drilling metal, wood, plastics, and composite materials in fabrication, mechanical, and general trade applications.

Installation Notes

Secure the bit firmly in the chuck and verify it is fully seated before operation. Always wear appropriate eye protection and secure the workpiece before drilling. Use cutting fluid when boring through hard metals to reduce heat buildup and extend bit life. Follow applicable shop safety codes and manufacturer guidelines for drill speed selection based on material type and bit diameter.

Technical Specifications

• Cutting Diameter: 23/32 inches
• Shank Size: 1/2 inch
• Surface Treatment: Black Gold
• Point Type: Self-Centering (Dynamo)
• Weight: 0.69 pounds

Standard Information

• Brand: EAGLE CUTTING TOOL
• Manufacturer Part Number: 1090D-046-I
