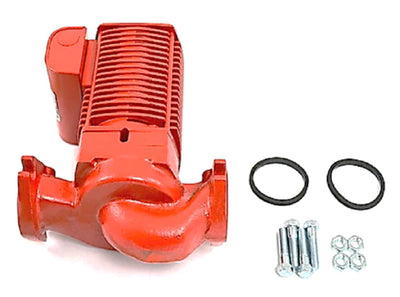

Armstrong Fluid Technology 182212-667 E22.2 1 Inch to 1-1/2 Inch Cast Iron Circulator Pump 2/5 HP Single Phase

Product Description

The Armstrong E22.2 Cast Iron Circulator Pump, model number 182212-667, is engineered for reliability in HVAC systems. This single-phase pump operates at 2/5 horsepower and is designed with a robust cast iron construction.

• Durable stainless steel shaft and permanently lubricated bearings enhance longevity and performance.
• Features a bellows-style mechanical seal with a silicon carbide wear surface, ensuring leak-proof operation.
• Compact design supports easy installation in tight spaces, ideal for both residential and light commercial settings.

Product Highlights

This circulator demonstrates high efficiency with a performance capacity up to 140 gallons per minute and a head of 60 feet, suitable for a variety of fluid handling applications.

Technical Specifications

• Motor Power: 2/5 HP
• Motor Speed: 3350 RPM
• Maximum Temperature: 230 degrees Fahrenheit
• Power Supply: 120V
• Working Pressure: 150 psi
• Construction Material: Cast Iron
• Product Dimensions: Flange-to-flange design minimizes installation space
