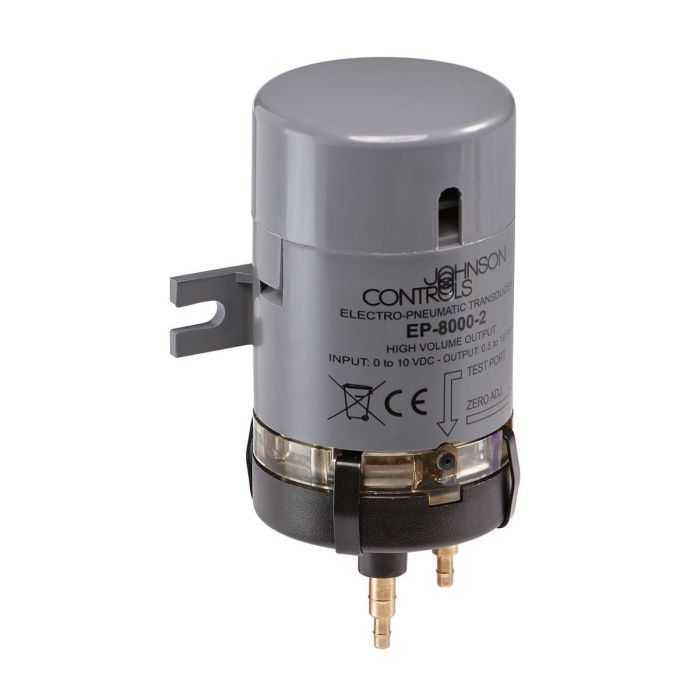

Johnson Controls EP-8000-2 Electronic To Pneumatic Transducer 0-10V

Product Description

The Johnson Controls EP-8000-2 is an electronic to pneumatic transducer. It converts a 0 to 10 VDC electrical signal into a pneumatic output ranging from 0.5 to 19 psi. This transducer is suitable for various industrial applications, including pressure monitoring and control systems.

• High volume and accurate pressure conversion
• Compact design for easy installation
• Factory set with fully adjustable zero and span

Product Highlights

The EP-8000-2 features barbed air connections for easy installation with standard pneumatic tubing. Its hypodermic needle test point allows for simple output pressure measurement.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: EP-8000-2

Technical Specifications

• Input Range: 0 to 10 VDC
• Output Range: 0.5 to 19 psi
• Dimensions: Height 3 inches, Width 2.85 inches, Length 5.55 inches
• Weight: 0.49 lbs
• Accuracy: +/- 0.25% of full scale
